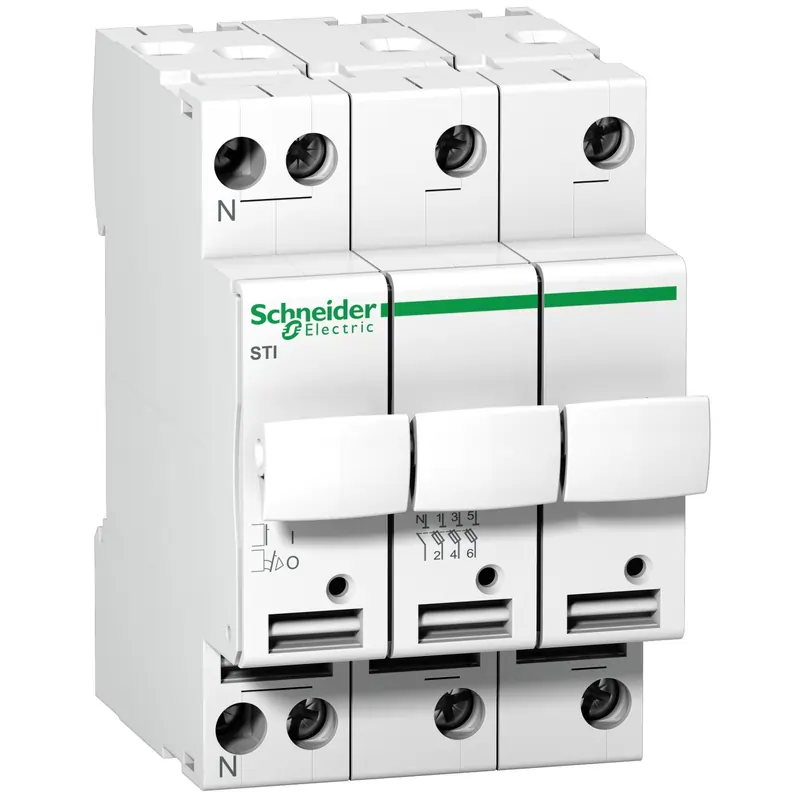

Acti 9 – fuse-disconnector STI – 3 poles + N – 25 A – for fuse 10.3 x 38 mm
28,000 CFA
Ref: A9N15658
SKU:
A9N15658
Categories: Circuit breakers, Electrical
Description
range |
Acti 9
|
|
---|---|---|
product name |
Acti 9 STI
|
|
product or component type |
Fuse-disconnector
|
|
device short name |
STI
|
|
poles description |
3P + N
|
[In] rated current |
2 A
4 A 6 A 10 A 16 A 20 A 25 A |
|
---|---|---|
fuse curve |
AM
GG |
|
fuse size |
10.3 x 38 mm
|
|
[Ue] rated operational voltage |
500 V AC
|
|
[Ui] rated insulation voltage |
500 V AC 50/60 Hz
|
|
mounting mode |
Clip-on
|
|
mounting support |
DIN rail
|
|
9 mm pitches |
6
|
|
height |
81 mm
|
|
width |
54 mm
|
|
depth |
75 mm
|
|
colour |
White
|
|
connections – terminals |
Screw clamp terminals1 cable(s) 0.75…10 mm² rigid
Screw clamp terminals1 cable(s) 0.5…6 mm² flexible Screw clamp terminals2 cable(s) 0.75…4 mm² rigid Screw clamp terminals2 cable(s) 0.5…6 mm² flexible |
|
wire stripping length |
12 mm
|
|
tightening torque |
2 N.m
|
standards |
IEC 60269-1/2
IEC EN 60947-3 |
|
---|---|---|
IP degree of protection |
IP20
|
|
pollution degree |
3
|
|
ambient air temperature for operation |
-20…60 °C
|
|
ambient air temperature for storage |
-40…80 °C
|
Unit Type of Package 1 |
PCE
|
|
---|---|---|
Number of Units in Package 1 |
1
|
|
Package 1 Weight |
182 g
|
|
Package 1 Height |
5.4 cm
|
|
Package 1 width |
7.5 cm
|
|
Package 1 Length |
8.6 cm
|
|
Unit Type of Package 2 |
BB1
|
|
Number of Units in Package 2 |
4
|
|
Package 2 Weight |
785 g
|
|
Package 2 Height |
3.9 cm
|
|
Package 2 width |
30 cm
|
|
Package 2 Length |
20 cm
|
|
Unit Type of Package 3 |
S03
|
|
Number of Units in Package 3 |
48
|
|
Package 3 Weight |
9.961 kg
|
|
Package 3 Height |
30 cm
|
|
Package 3 width |
30 cm
|
|
Package 3 Length |
40 cm
|
