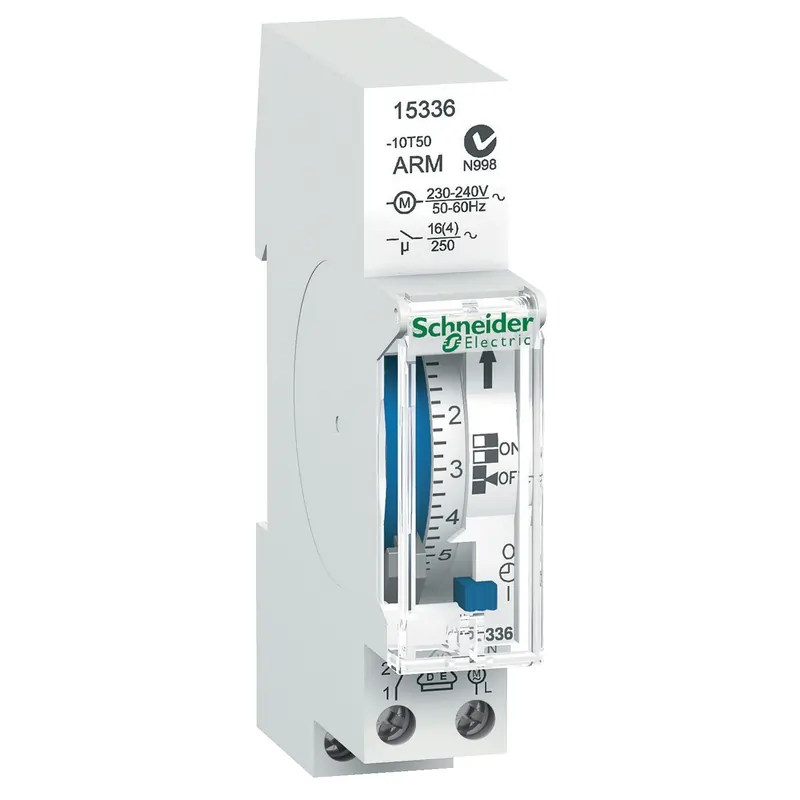

Acti 9 – IH – mechanical time switch – 24 h – 100 h memory
60,000 CFA
Ref: 15336
Description
| range of product | Acti 9 | |
|---|---|---|
| product name | Acti 9 IH | |
| device short name | IH | |
| product or component type | Mechanical time switch | |
| number of channels | 1 | |
| function available | Manual time changeover |
| device application | Building | |
|---|---|---|
| load type | 230 V AC halogen lamp (1000 W) 230 V AC incandescent lamp (1000 W) 7 fluocompact lamp (11 W) 7 fluocompact lamp (15 W) 7 fluocompact lamp (20 W) 7 fluocompact lamp (7 W) 10 parallel-corrected fluorescent tube conventional ballast (58 W) 15 parallel-corrected fluorescent tube conventional ballast (40 W) 3 parallel-corrected fluorescent tube conventional ballast (100 W) | |
| cycle duration | 24 h | |
| measurement accuracy | +/- 1 s/day | |
| maximum number of switchings | 48 on – 48 off | |
| minimum interval duration | 15 min | |
| type of setting | Manual time changeover | |
| measurement accuracy | +/- 1 s/day 20 °C | |
| power consumption in VA | 2.5Â VA | |
| maximum switching current | 16Â A – 250 V AC pf = 1 4Â A – 250 V AC pf = 0.6 | |
| [Ue] rated operational voltage | 230 V AC +/- 10 % at 50/60 Hz | |
| battery life | 10Â year(s) | |
| backup time | 100 h time and program saving | |
| mounting support | DIN rail | |
| 9 mm pitches | 2 | |
| colour tint | White (RAL 9003) | |
| connections – terminals | Screw terminals | |
| IP degree of protection | IP20 B | |
| width | 18Â mm | |
| height | 90Â mm | |
| depth | 66Â mm | |
| net weight | 0.101Â kg |
| ambient air temperature for operation | -10…50 °C | |
|---|---|---|
| IP degree of protection | Terminals: IP20 B |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 103Â g | |
| Package 1 Height | 2Â cm | |
| Package 1 width | 7Â cm | |
| Package 1 Length | 11Â cm | |
| Unit Type of Package 2 | S03 | |
| Number of Units in Package 2 | 110 | |
| Package 2 Weight | 11.964Â kg | |
| Package 2 Height | 30Â cm | |
| Package 2 width | 30Â cm | |
| Package 2 Length | 40Â cm | |
| Unit Type of Package 3 | P12 | |
| Number of Units in Package 3 | 880 | |
| Package 3 Weight | 110.192Â kg | |
| Package 3 Height | 50Â cm | |
| Package 3 width | 80Â cm | |
| Package 3 Length | 120Â cm |
Additional information
| Brand |
Schneider |
|---|
