| range |
Altira
|
|
|---|---|---|
| product or component type |

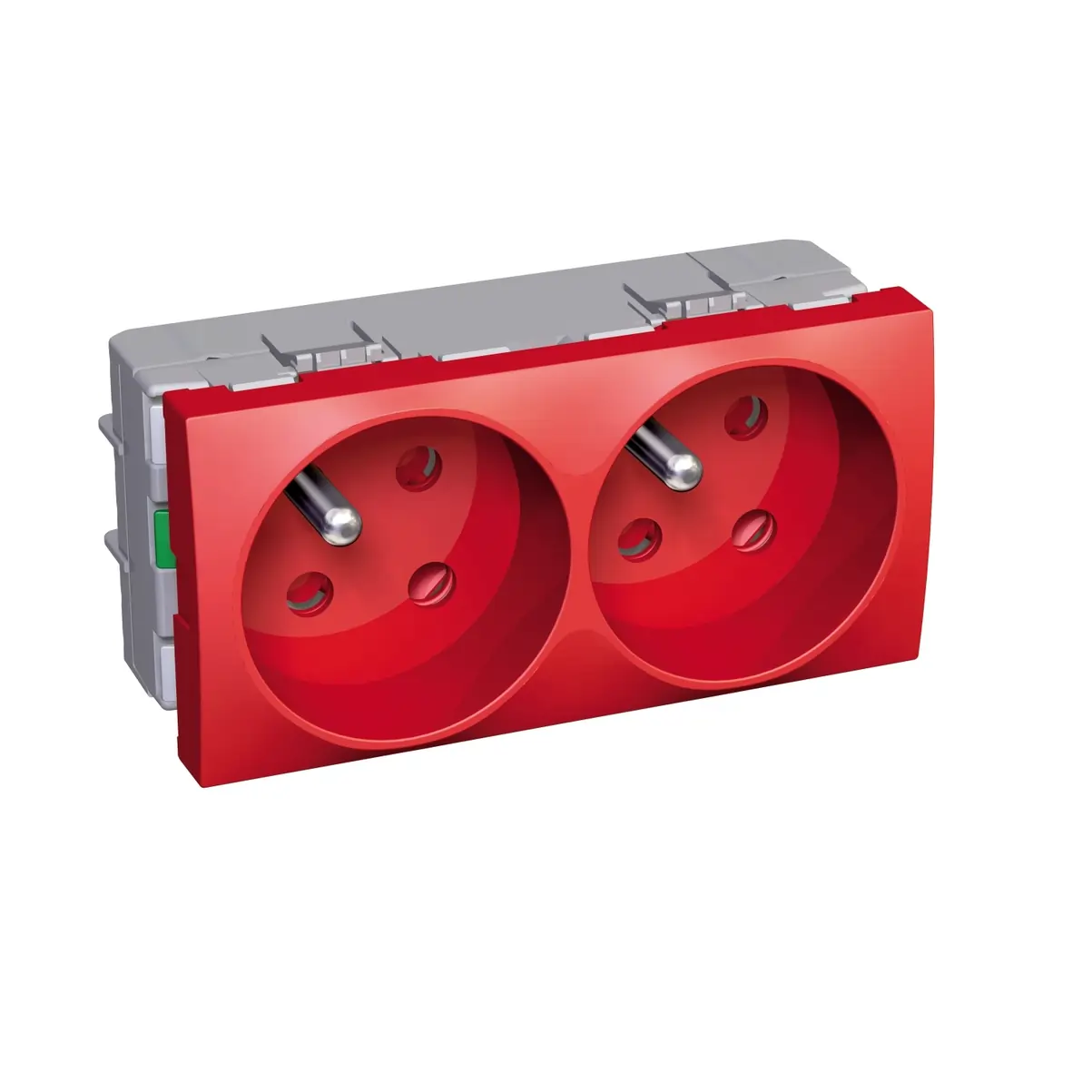

Socket-outlet
|
|
| range compatibility |
fixing frame
fixing frame |
|
| device presentation |
Mechanism
|
|
| number of power socket outlets |
2 x 2P + E, French
|
|
| outlet standard description |
Pin earth
|
|
| socket additional information |
Red tamperproof
Shuttered |
|
| colour tint |
Cover plate: red (RAL 3000)
|
| product destination |
Fixing frames
|
|
|---|---|---|
| range compatibility |
OptiLine 45
OptiLine 70 with Altira adaptor |
|
| ground lug position |
Slanted 45° position
|
|
| rated current |
16 A at 250 V AC 50/60 Hz
|
|
| number of modules |
4 modules
|
|
| fixing mode |
Clip-in
|
|
| connections – terminals |
Screwless terminals
|
|
| clamping connection capacity |
4 x 1.5…4 x 2.5 mm² for rigid cable(s)
4 x 1.5…4 x 2.5 mm² for solid stranded cable(s) |
|
| material |
PC: mechanism cover
|
|
| surface treatment |
Antibacterial
|
|
| surface finish |
Satin
|
|
| standards |
IEC 60884-1
EN 60529 NF C 61-314 EN 62262 |
|
| height |
45Â mm
|
|
| width |
90Â mm
|
|
| depth |
39Â mm
|
|
| net weight |
0.088Â kg
|
