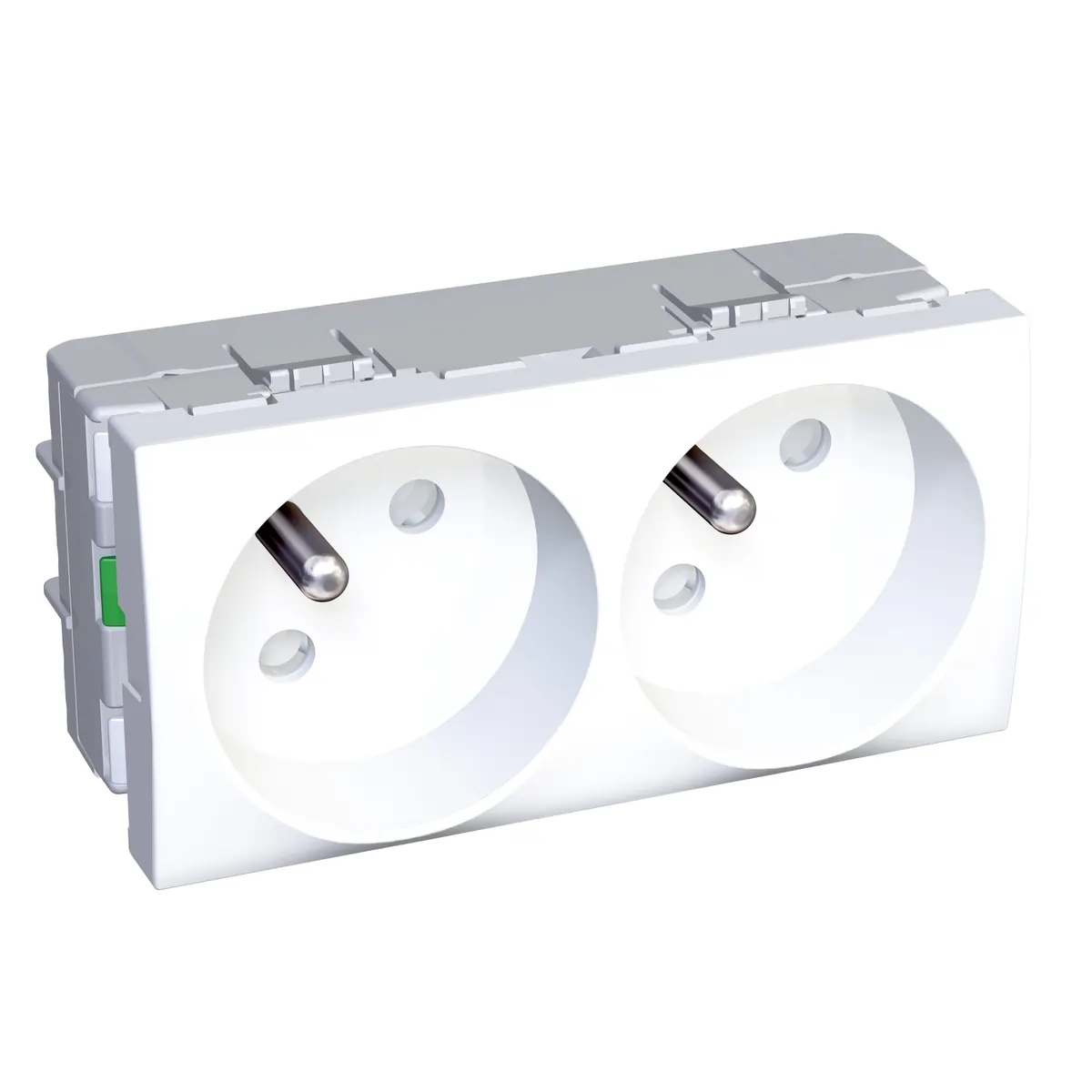

Altira – 2 SO – 2P+E with shutters – pin earth – polar white
12,000 CFA
Ref ALB44222
Description
| range | Altira | |
|---|---|---|
| product or component type | Socket-outlet | |
| range compatibility | fixing frame fixing frame | |
| device presentation | Mechanism | |
| number of power socket outlets | 2 x 2P + E, French | |
| outlet standard description | Pin earth | |
| socket additional information | Shuttered | |
| colour tint | Cover plate: polar white (RAL 9003) |
| product destination | Fixing frames | |
|---|---|---|
| range compatibility | OptiLine 70 with Altira adaptor OptiLine 45 | |
| ground lug position | Slanted 45° position | |
| rated current | 16 A at 250 V AC 50/60 Hz | |
| number of modules | 4 modules | |
| fixing mode | Clip-in | |
| connections – terminals | Screwless terminals | |
| clamping connection capacity | 4 x 1.5…4 x 2.5 mm² for rigid cable(s) 4 x 1.5…4 x 2.5 mm² for solid stranded cable(s) | |
| material | PC: mechanism cover | |
| surface treatment | Untreated | |
| surface finish | Satin | |
| product compatibility | Altira fixing frame | |
| standards | IEC 60884-1 NF C 61-314 EN 60529 EN 62262 | |
| height | 45Â mm | |
| width | 90Â mm | |
| depth | 39Â mm | |
| net weight | 0.087Â kg |
| ambient air temperature for operation | 5…50 °C | |
|---|---|---|
| ambient air temperature for storage | -15…60 °C | |
| IK degree of protection | IK02 | |
| IP degree of protection | IP20 | |
| environmental characteristic | Liquid soap Ammonia Hydrogen peroxide (H2O2) Oil Petrol Bleach UV resistant Window-cleaning fluid Alcohol Acetone |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 90Â g | |
| Package 1 Height | 4Â cm | |
| Package 1 width | 4.5Â cm | |
| Package 1 Length | 9Â cm | |
| Unit Type of Package 2 | BB1 | |
| Number of Units in Package 2 | 10 | |
| Package 2 Weight | 984Â g | |
| Package 2 Height | 20Â cm | |
| Package 2 width | 11Â cm | |
| Package 2 Length | 21Â cm | |
| Unit Type of Package 3 | S04 | |
| Number of Units in Package 3 | 70 | |
| Package 3 Weight | 7.764Â kg | |
| Package 3 Height | 30Â cm | |
| Package 3 width | 40Â cm | |
| Package 3 Length | 60Â cm |
Additional information
| Brand |
Schneider |
|---|
