| range |
Altira
|
|
|---|---|---|
| product or component type |

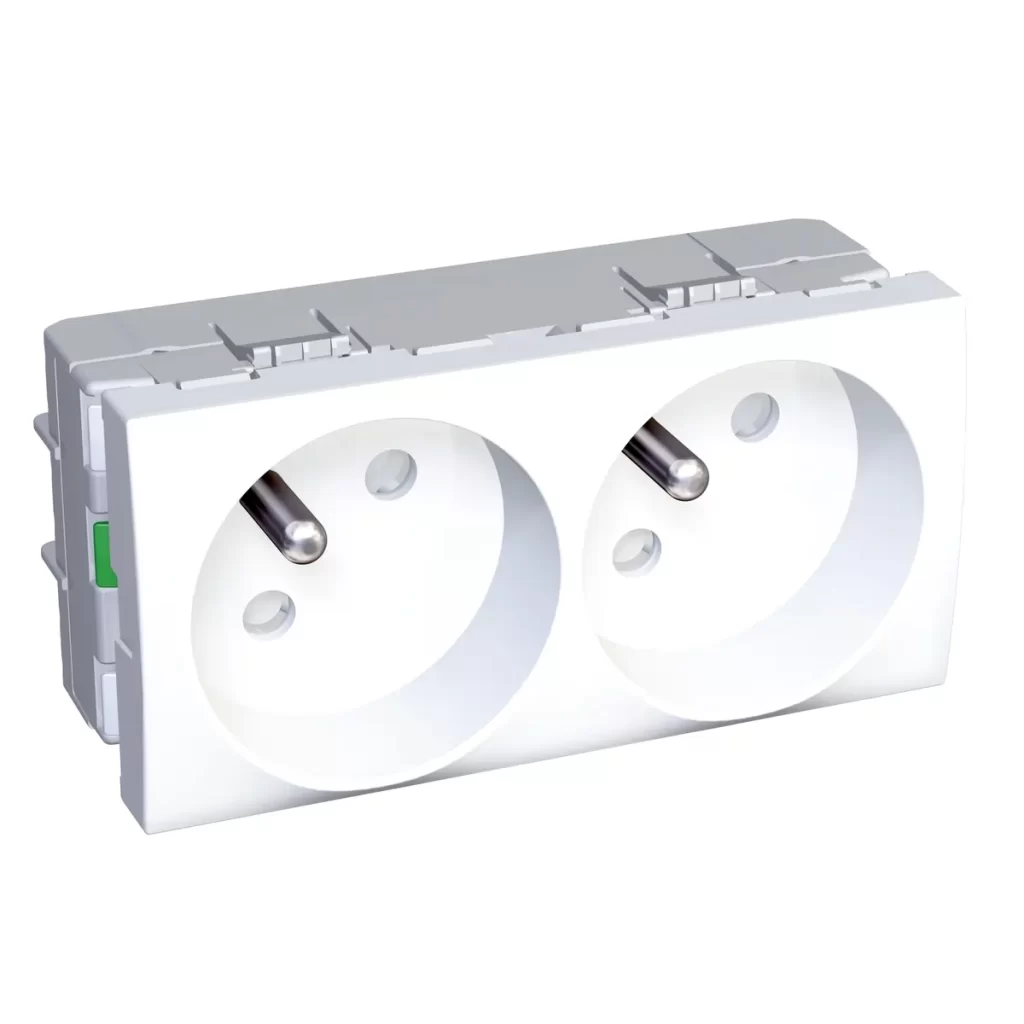

Socket-outlet
|
|
| range compatibility |
fixing frame
fixing frame |
|
| device presentation |
Mechanism
|
|
| number of power socket outlets |
2 x 2P + E, French
|
|
| outlet standard description |
Pin earth
|
|
| socket additional information |
Shuttered
|
|
| colour tint |
Cover plate: polar white (RAL 9003)
|
| product destination |
Fixing frames
|
|
|---|---|---|
| range compatibility |
OptiLine 70 with Altira adaptor
OptiLine 45 |
|
| ground lug position |
Slanted 45° position
|
|
| rated current |
16 A at 250 V AC 50/60 Hz
|
|
| number of modules |
4 modules
|
|
| fixing mode |
Clip-in
|
|
| connections – terminals |
Screwless terminals
|
|
| clamping connection capacity |
4 x 1.5…4 x 2.5 mm² for rigid cable(s)
4 x 1.5…4 x 2.5 mm² for solid stranded cable(s) |
|
| material |
PC: mechanism cover
|
|
| surface treatment |
Untreated
|
|
| surface finish |
Satin
|
|
| product compatibility |
Altira fixing frame
|
|
| standards |
IEC 60884-1
NF C 61-314 EN 60529 EN 62262 |
|
| height |
45 mm
|
|
| width |
90 mm
|
|
| depth |
39 mm
|
|
| net weight |
0.087 kg
|
| ambient air temperature for operation |
5…50 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-15…60 °C
|
|
| IK degree of protection |
IK02
|
|
| IP degree of protection |
IP20
|
|
| environmental characteristic |
Liquid soap
Ammonia Hydrogen peroxide (H2O2) Oil Petrol Bleach UV resistant Window-cleaning fluid Alcohol Acetone |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
90 g
|
|
| Package 1 Height |
4 cm
|
|
| Package 1 width |
4.5 cm
|
|
| Package 1 Length |
9 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
10
|
|
| Package 2 Weight |
984 g
|
|
| Package 2 Height |
20 cm
|
|
| Package 2 width |
11 cm
|
|
| Package 2 Length |
21 cm
|
|
| Unit Type of Package 3 |
S04
|
|
| Number of Units in Package 3 |
70
|
|
| Package 3 Weight |
7.764 kg
|
|
| Package 3 Height |
30 cm
|
|
| Package 3 width |
40 cm
|
|
| Package 3 Length |
60 cm
|
