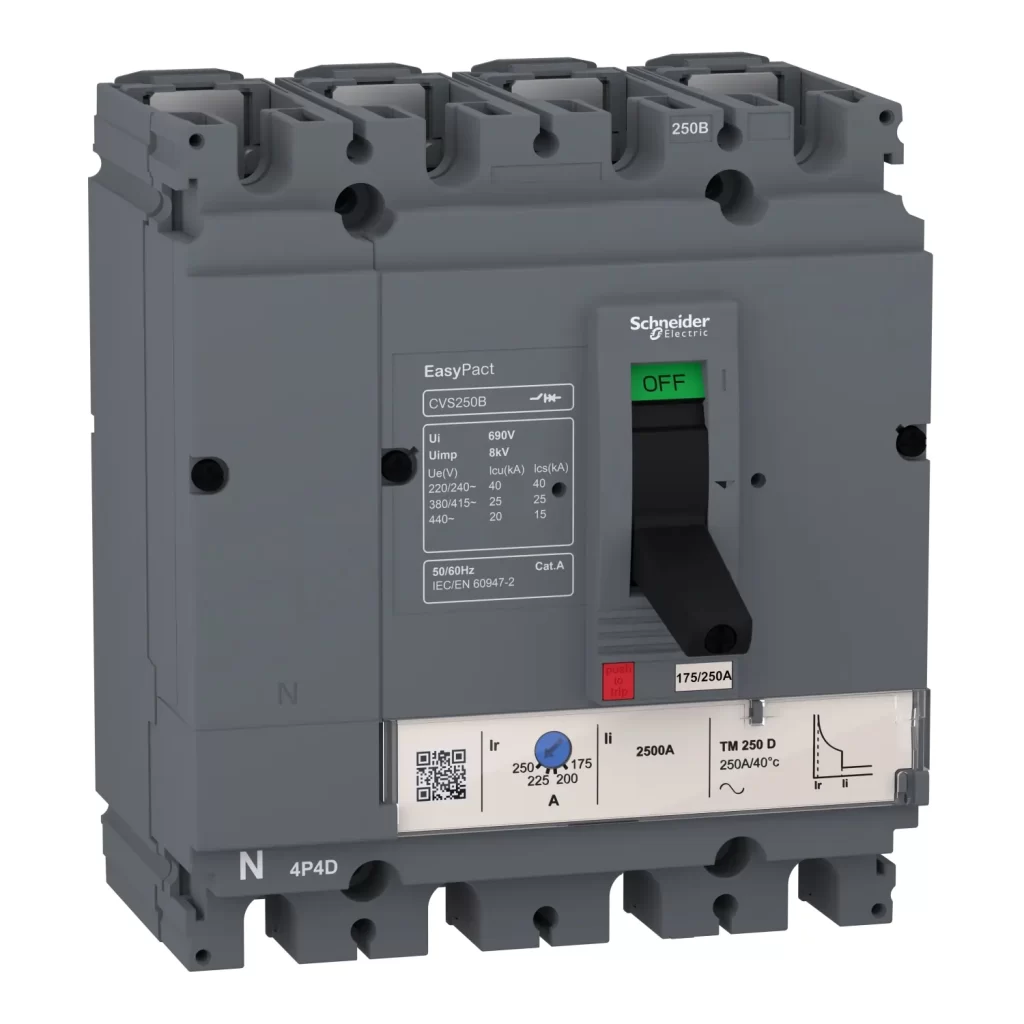

| range of product |
Easypact CVS100…250
|
|
|---|---|---|
| product or component type |
Circuit breaker
|
|
| device short name |
CVS160B
|
|
| device application |
Distribution
|
|
| poles description |
4P
|
|
| protected poles description |
3d
|
|
| neutral position |
Left
|
|
| Earth leakage protection (Vigi add on) |
Without
|
|
| [In] rated current |
160 A at 40 °C
|
|
| breaking capacity code |
B
|
|
| network type |
AC
|
|
| [Icu] Breaking capacity |
40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| utilisation category |
Category A
|
|
| trip unit name |
TM-D
|
|
| trip unit technology |
Thermal-magnetic
|
|
| trip unit rating |
160 A at 40 °C
|
|
| protection type |
Overload protection (thermal)
Short-circuit protection (magnetic) |
| network frequency |
50/60 Hz
|
|
|---|---|---|
| control type |
Toggle
|
|
| mounting mode |
Fixed
|
|
| mounting support |
Backplate
|
|
| upside connection |
Front
|
|
| downside connection |
Front
|
|
| connections – terminals |
Screw connection
|
|
| [Uimp] rated impulse withstand voltage |
8 kV conforming to EN/IEC 60947-2
|
|
| thermal protection adjustment range |
112…160 A
|
|
| [Ics] rated service breaking capacity |
15 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| mechanical durability |
25000 cycles
|
|
| electrical durability |
12000 cycles 415 V In conforming to IEC 60947-2
|
|
| connection pitch |
35 mm
|
|
| contact position indicator |
Yes
|
|
| neutral protection setting |
No protection (3d)
|
|
| long time pick-up adjustment type Ir |
Adjustable
|
|
| long time pick-up adjustment range |
0.7…1 x In
|
|
| long time delay adjustment type |
Fixed
|
|
| instantaneous pick-up adjustment type Ii |
Fixed
|
|
| instantaneous pick-up adjustment range |
1250 A
|
|
| height |
161 mm
|
|
| width |
140 mm
|
|
| depth |
86 mm
|
|
| net weight |
2.3 kg
|
| electrical shock protection class |
Class II
|
|
|---|---|---|
| standards |
EN 60947-2
IEC 60947-2 |
|
| product certifications |
IEC
GOST |
|
| IP degree of protection |
IP40
|
|
| pollution degree |
3 conforming to IEC 60664-1
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-50…85 °C
|
