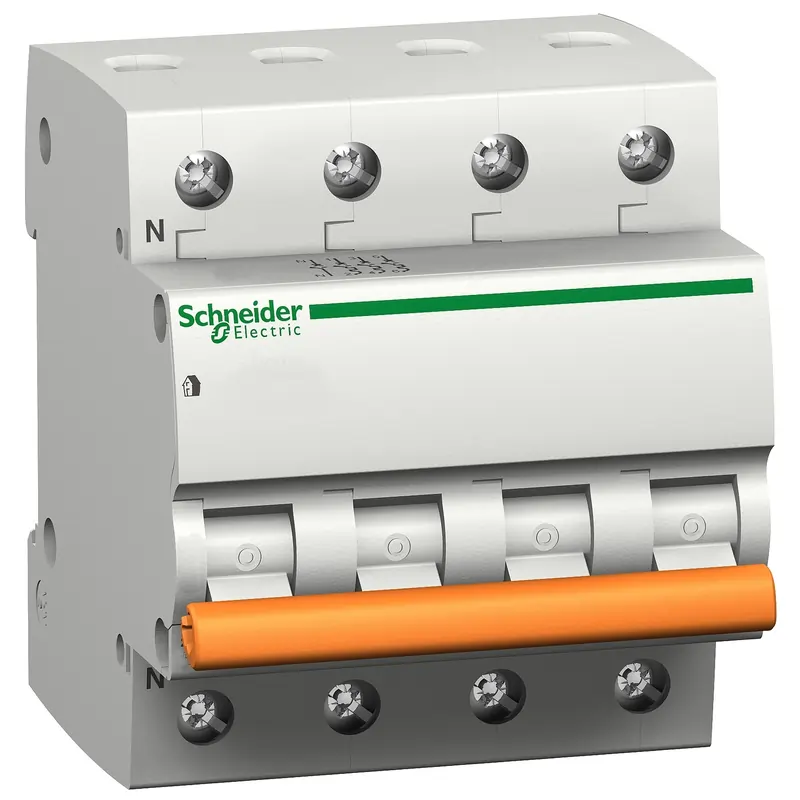

Domae MCB – miniature circuit-breaker – 3P+N – 10A – C Curve – 3000A
35,000 CFA
Ref: 12585
Description
| Range | Domae | |
|---|---|---|
| Type of product or equipment | Miniature circuit breaker | |
| Name of the device | Domae MCB | |
| Application | Distribution | |
| Description of the poles | 3P + N | |
| number of protected poles | 3 | |
| Neutral pole position | Left | |
| In rated operational current | 10 A | |
| Type of network | IT | |
| Trigger type | Thermal-magnetic | |
| trip curve | VS | |
| breaking capacity | Icn 3000 A |
| Network frequency | 50/60 Hz | |
|---|---|---|
| [Ue] rated operational voltage | 400 V AC 50/60 Hz | |
| magnetic trip limit | 5 … 10 x In | |
| [Ics] rated short-circuit service breaking capacity | 3000 kA 100% Icn conforming to EN / IEC 60898-1 | |
| Fully apparent cut | Yes | |
| Command type | By crankpin | |
| Voltage indication | Trigger error | |
| Installation mode | Snap-in | |
| Mounting bracket | DIN rail | |
| compatibility of distributor, comb, busbar | Yes | |
| step of 9 mm | 8 | |
| Height | 81 mm | |
| Width | 72 mm | |
| Depth | 78.5 mm | |
| Product weight | 0.38 kg | |
| Color | White | |
| Mechanical endurance | 20000 cycles | |
| connection mode | Tunnel type terminals (top or bottom) – 1 … 25 mm² – rigid Tunnel type terminals (top or bottom) – 1 … 16 mm² – flexible | |
| Wire stripping length | 14 mm for top or bottom connection | |
| Tightening torque | 2 Nm top or bottom | |
| Differential protection | Without |
| Standards | IEC 60529 IEC 60068-1 IEC 60898-1 | |
|---|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 | |
| Tropicalization | 2 conforming to IEC 60068-1 | |
| Relative humidity | 95% at 55 ° C | |
| Operating temperature | -25… 60 ° C | |
| Ambient storage temperature | -40… 70 ° C |
