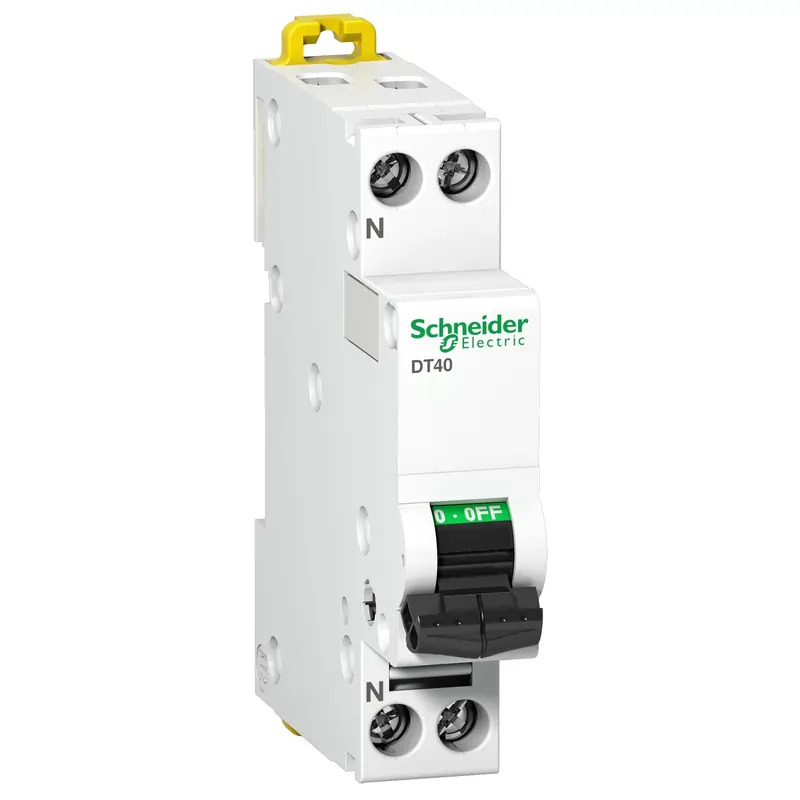

DT40 – circuit breaker – DT40 – 1P + N – 32A – C curve

Main range of product ProDis range Prodis product name DT40 product or component type Miniature circuit-breaker device short name DT40 device application Distribution poles description 1P + N number of protected poles 1 neutral position Left [In] rated current 32 A network type AC trip unit technology Thermal-magnetic curve code C breaking capacity 4500 A Icn at 230 V AC 50 Hz conforming to EN/IEC 60898-1 6 kA Icu at 230…240 V AC 50 Hz conforming to IEC 60947-2 suitability for isolation Yes quality labels NF Complementary network frequency 50 Hz [Ue] rated operational voltage 230 V AC 50 Hz between phase and neutral magnetic tripping limit 5…10 x In [Ics] rated service breaking capacity 4500 A 100 % x Icn at 230 V AC 50 Hz conforming to EN/IEC 60898-1 4.5 kA 75 % x Icu at 230…240 V AC 50 Hz conforming to IEC 60947-2 limitation class 3 conforming to EN/IEC 60898-1 [Ui] rated insulation voltage 400 V AC 50 Hz [Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-2 contact position indicator Yes control type Toggle local signaling ON/OFF indication mounting mode Clip-on mounting support DIN rail 9 mm pitches 2 height 81 mm width 18 mm depth 78 mm net weight 115 g color: White mechanical durability 20000 cycles electrical durability 10000 cycles locking options description Padlocking device connections – terminals Tunnel type terminals downstream 0.33…10 mm² flexible Tunnel type terminals downstream 0.75…16 mm² rigid Tunnel type terminals upstream 0.33…10 mm² flexible Tunnel type terminals upstream 0.75…16 mm² rigid wire stripping length 13 mm tightening torque 2 N.m earth-leakage protection Separate block Environment standards EN/IEC 60898-1 EN/IEC 60947-2 IP degree of protection IP20 conforming to IEC 60529 pollution degree 3 conforming to IEC 60947-2 overvoltage category IV tropicalization 2 conforming to IEC 60068-1 relative humidity 95 % at 55 °C operating altitude 2000 m ambient air temperature for operation -25…70 °C ambient air temperature for storage -40…70 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Weight 120 g Package 1 Height 1.7 cm Package 1 width 7.2 cm Package 1 Length 9 cm Unit Type of Package 2 BB1 Number of Units in Package 2 12 Package 2 Weight 1.496 kg Package 2 Height 2.58 cm Package 2 width 30 cm Package 2 Length 20 cm Unit Type of Package 3 S03 Number of Units in Package 3 144 Package 3 Weight 18.524 kg Package 3 Height 30 cm Package 3 width 30 cm Package 3 Length 40 cm Offer Sustainability Sustainable offer status Green Premium product REACh Regulation REACh Declaration EU RoHS Directive Compliant EU RoHS Declaration Mercury-free Yes RoHS exemption information Yes China RoHS Regulation China RoHS declaration Product out of China RoHS scope. Substance declaration for your information Environmental Disclosure Product Environmental Profile WEEE The product must be disposed of on European Union markets following specific waste collection and never end up in rubbish bins Halogen content performance Halogen-free product Contractual warranty Warranty 18 months
