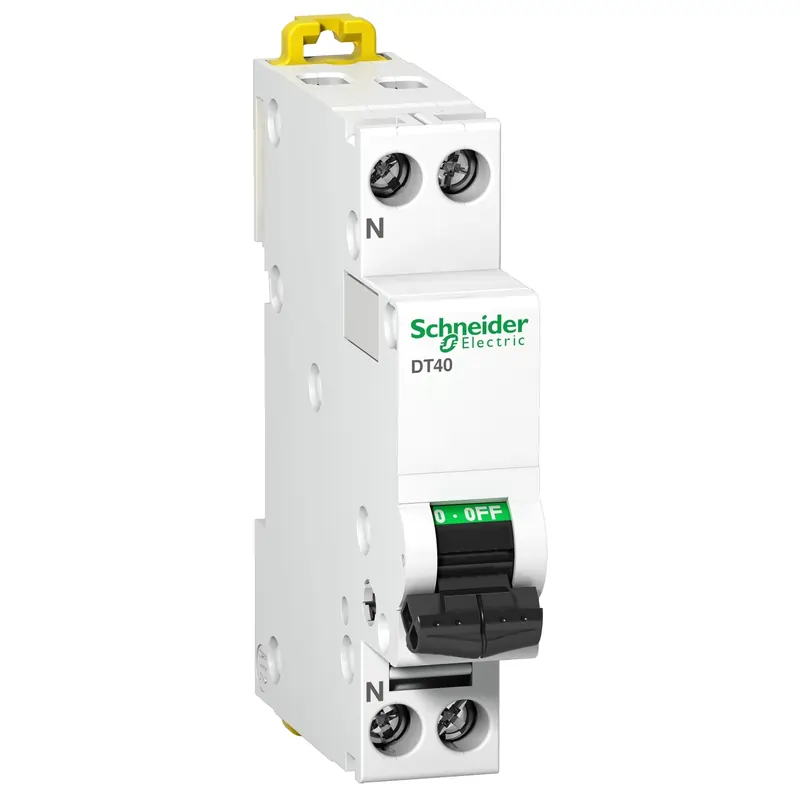

DT40 – circuit breaker – DT40 – 1P + N – 40A – C curve
14,000 CFA
Ref: A9N21029
Description
| range of product |
ProDis
|
|
|---|---|---|
| range |
Prodis
|
|
| product name |
DT40
|
|
| product or component type |
Miniature circuit-breaker
|
|
| device short name |
DT40
|
|
| device application |
Distribution
|
|
| poles description |
1P + N
|
|
| number of protected poles |
1
|
|
| neutral position |
Left
|
|
| [In] rated current |
40 A
|
|
| network type |
AC
|
|
| trip unit technology |
Thermal-magnetic
|
|
| curve code |
C
|
|
| breaking capacity |
4500 A Icn at 230 V AC 50 Hz conforming to EN/IEC 60898-1
6 kA Icu at 230…240 V AC 50 Hz conforming to IEC 60947-2 |
|
| suitability for isolation |
Yes
|
|
| quality labels |
NF
|
| network frequency |
50 Hz
|
|
|---|---|---|
| [Ue] rated operational voltage |
230 V AC 50 Hz between phase and neutral
|
|
| magnetic tripping limit |
5…10 x In
|
|
| [Ics] rated service breaking capacity |
4500 A 100 % x Icn at 230 V AC 50 Hz conforming to EN/IEC 60898-1
4.5 kA 75 % x Icu at 230…240 V AC 50 Hz conforming to IEC 60947-2 |
|
| limitation class |
3 conforming to EN/IEC 60898-1
|
|
| [Ui] rated insulation voltage |
400 V AC 50 Hz
|
|
| [Uimp] rated impulse withstand voltage |
4 kV conforming to IEC 60947-2
|
|
| contact position indicator |
Yes
|
|
| control type |
Toggle
|
|
| local signalling |
ON/OFF indication
|
|
| mounting mode |
Clip-on
|
|
| mounting support |
DIN rail
|
|
| 9 mm pitches |
2
|
|
| height |
81 mm
|
|
| width |
18 mm
|
|
| depth |
78 mm
|
|
| net weight |
115 g
|
|
| colour |
White
|
|
| mechanical durability |
20000 cycles
|
|
| electrical durability |
10000 cycles
|
|
| locking options description |
Padlocking device
|
|
| connections – terminals |
Tunnel type terminals downstream 0.33…10 mm² flexible
Tunnel type terminals downstream 0.75…16 mm² rigid Tunnel type terminals upstream 0.33…10 mm² flexible Tunnel type terminals upstream 0.75…16 mm² rigid |
|
| wire stripping length |
13 mm
|
|
| tightening torque |
2 N.m
|
|
| earth-leakage protection |
Separate block
|
Additional information
| Brand |
Schneider |
|---|
