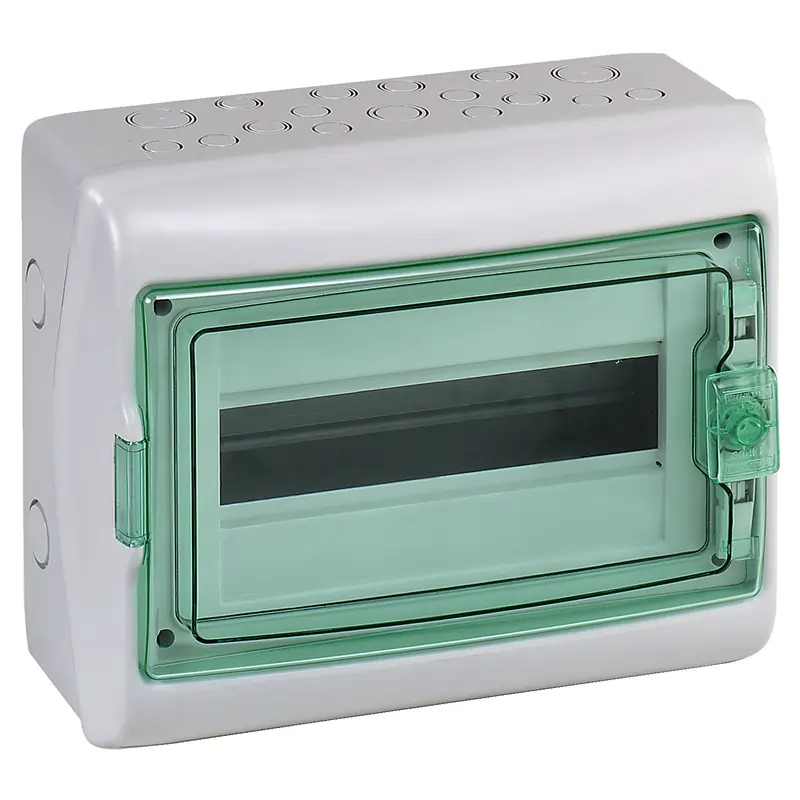

Kaedra – for modular device – 1 x 12 modules – 1 terminal block
23,000 CFA
Ref 13962
Description
Characteristics
| range | Kaedra | |
|---|---|---|
| product or component type | Weatherproof enclosure | |
| enclosure type | Enclosure for modular device | |
| accessories included with enclosure | 1 wiring strap 1 marking kit 1 terminal block support 1 terminal block 8 holes | |
| mounting plate description | Slotted |
| enclosure mounting | Surface | |
|---|---|---|
| number of 18 mm modules per row | 12 | |
| total number of 18 mm modules | 12 | |
| number of horizontal rows | 1 | |
| electrical insulation class | Class II Double insulation | |
| provided equipment | 1 marking kit 1 wiring strap 1 terminal block 8 holes 1 terminal block support | |
| type of front cover | Reversible Transparent | |
| power dissipation in W | 24Â W | |
| [In] rated current | 63Â A | |
| type of rail | DIN | |
| number of pre-cutouts PG ISO | 17 | |
| number of terminal blocks | 1 with 8 outgoers | |
| distribution block outgoers | 4 x 10 mm² 4 x 16 mm² | |
| locking options description | Optional keylock | |
| enclosure material | Self-extinguishing polymer | |
| width | 340Â mm | |
| height | 280Â mm | |
| depth | 160Â mm | |
| internal depth | 88Â mm | |
| colour | Door: transparent green Enclosure: light grey (RAL 7035) |
Additional information
| Brand |
Schneider |
|---|
