| range |
Linergy
|
|
|---|---|---|
| product name |

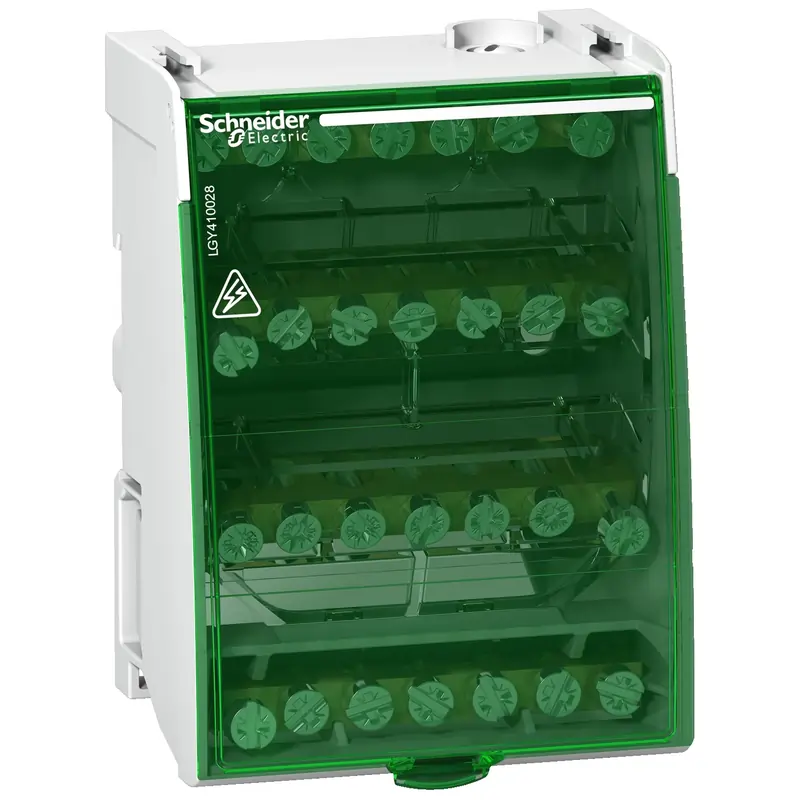

Linergy DS
|
|
| product or component type |
Distribution block
|
| mounting support |
DIN rail
|
|
|---|---|---|
| range compatibility |
Prisma G
Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys ComPact |
|
| product compatibility |
Spacial enclosures
|
|
| poles description |
4P
|
|
| distribution block outgoers |
4 x 7 holes
|
|
| [Ue] rated operational voltage |
230 V AC Ph/N
440 V AC Ph/Ph |
|
| [Ui] rated insulation voltage |
500Â V AC
|
|
| [Uimp] rated impulse withstand voltage |
8Â kV
|
|
| [Ie] rated operational current |
100 A at 40 °C
|
|
| [Icw] rated short-time withstand current |
3Â kAfor 1 s
|
|
| [Ipk] rated peak withstand current |
24Â kA
|
|
| connections – terminals |
Supply: screw terminal 2 cable(s) 2.5…25 mm² rigid
Supply: screw terminal 2 cable(s) 1.5…16 mm² flexible with cable end Distribution: screw terminal 5 cable(s) 1.5…16 mm² rigid Distribution: screw terminal 5 cable(s) 1.5…10 mm² flexible with cable end |
|
| tightening torque |
Supply: 2Â N.m flat screwdriver 7.5Â mm
Supply: 2Â N.m PZ2 screwdriver 7.5Â mm Distribution: 2Â N.m flat screwdriver 5.5Â mm Distribution: 2Â N.m PZ2 screwdriver 5.5Â mm |
|
| 9 mm pitches |
8
|
|
| height |
100Â mm
|
|
| width |
71Â mm
|
|
| depth |
50.5Â mm
|
|
| net weight |
0.21Â kg
|
|
| colour |
White (RAL 9003)
|
