range |
Linergy
|
|
---|---|---|
product name |

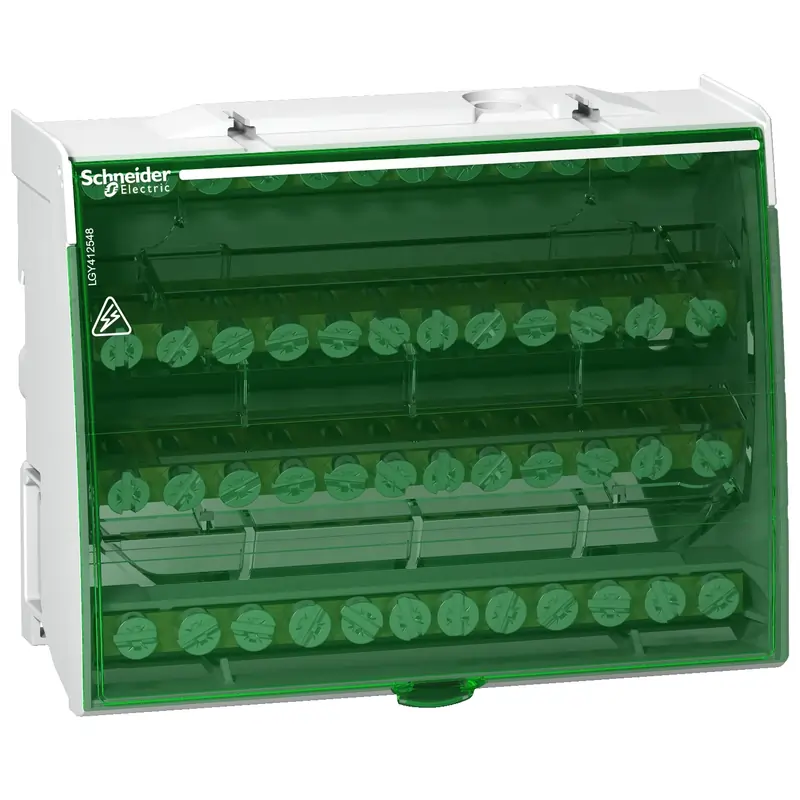

Linergy DS
|
|
product or component type |
Distribution block
|
mounting support |
DIN rail
|
|
---|---|---|
range compatibility |
Prisma G
Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys ComPact |
|
product compatibility |
Spacial enclosures
|
|
poles description |
4P
|
|
distribution block outgoers |
4 x 12 holes
|
|
[Ue] rated operational voltage |
230 V AC Ph/N
440 V AC Ph/Ph |
|
[Ui] rated insulation voltage |
500Â V AC
|
|
[Uimp] rated impulse withstand voltage |
8Â kV
|
|
[Ie] rated operational current |
125 A at 40 °C
|
|
[Icw] rated short-time withstand current |
4.2Â kAfor 1 s
|
|
[Ipk] rated peak withstand current |
26Â kA
|
|
connections – terminals |
Distribution: screw terminal 4 cable(s) 1.5…16 mm² rigid
Distribution: screw terminal 4 cable(s) 1.5…10 mm² flexible with cable end Supply: screw terminal 1 cable(s) 10…35 mm² rigid Supply: screw terminal 1 cable(s) 4…25 mm² flexible with cable end Distribution: screw terminal 7 cable(s) 2.5…25 mm² rigid Distribution: screw terminal 7 cable(s) 1.5…16 mm² flexible with cable end |
|
tightening torque |
Distribution: 2Â N.m flat screwdriver 7.5Â mm
Distribution: 2Â N.m PZ2 screwdriver 7.5Â mm Supply: 2.5Â N.m flat screwdriver 9Â mm Supply: 2.5Â N.m PZ2 screwdriver 9Â mm Distribution: 2Â N.m flat screwdriver 6.5Â mm Distribution: 2Â N.m PZ2 screwdriver 6.5Â mm |
|
9 mm pitches |
14
|
|
height |
100Â mm
|
|
width |
126Â mm
|
|
depth |
50.5Â mm
|
|
net weight |
0.386Â kg
|
|
colour |
White (RAL 9003)
|
