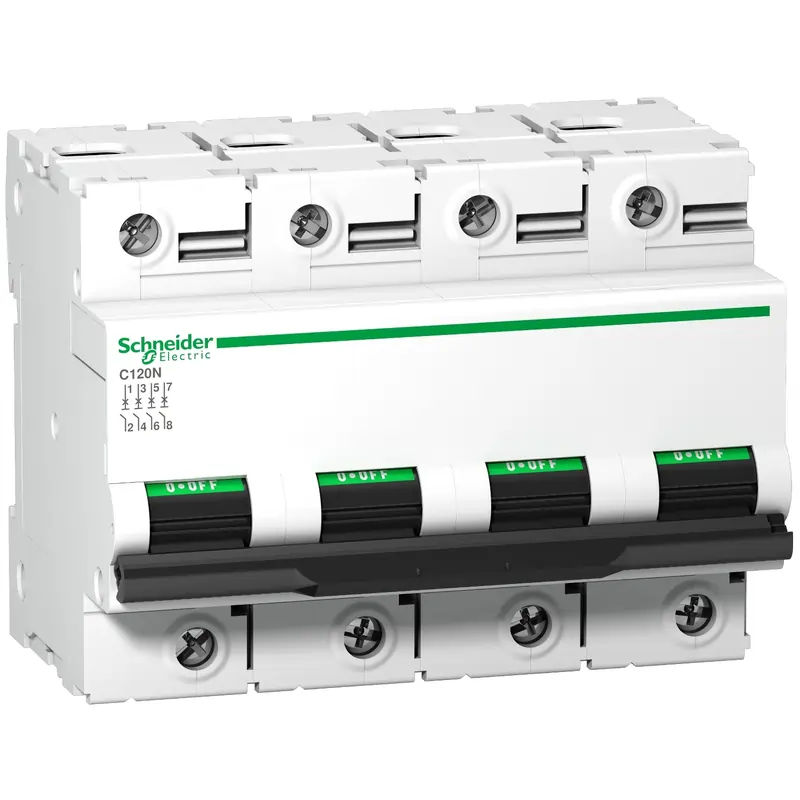

Miniature circuit-breaker, Acti9 C120N, 4P, 125 A, C curve, 10000 A (IEC 60898-1), 10 kA (IEC 60947-2)

Main range of product C120 range Acti 9 product name C120 product or component type Miniature circuit-breaker

device short name C120N device application Distribution poles description 4P number of protected poles 4 neutral

position Left [In] rated current 125 A at 30 °C network type AC trip unit technology Thermal-magnetic curve code C

breaking capacity 10000 A Icn at 230…400 V AC 50/60 Hz conforming to EN/IEC 60898-1 6 kA Icu at 440 V AC

50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2 10

kA Icu at 380…415 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at <= 500 V DC conforming to EN/IEC

60947-2 suitability for isolation Yes conforming to IEC 60947-2 Complementary network frequency 50/60 Hz [Ue]

rated operational voltage 380…415 V AC 50/60 Hz <= 500 V DC 220…240 V AC 50/60 Hz 440 V AC 50/60 Hz

230…400 V AC 50/60 Hz magnetic tripping limit 5…10 x In [Ics] rated service breaking capacity 7500 A 75 %

conforming to EN/IEC 60898-1 – 230…400 V AC 50/60 Hz 4.5 kA 75 % conforming to EN/IEC 60947-2 – 440 V AC

50/60 Hz 7.5 kA 75 % conforming to EN/IEC 60947-2 – 380…415 V AC 50/60 Hz 15 kA 75 % conforming to EN/IEC

60947-2 – 220…240 V AC 50/60 Hz 10 kA 100 % conforming to EN/IEC 60947-2 – <= 500 V DC limitation class 3

conforming to EN/IEC 60947-2 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2 contact position indicator Yes control

type Toggle local signaling ON/OFF indication mounting mode Clip-on mounting support 35 mm symmetrical DIN

rail comb busbar and distribution block compatibility NO 9 mm pitch 12 height 81 mm width 108 mm depth 73

mm net weight 0.82 kg color White mechanical durability 20000 cycles electrical durability 5000 cycles

conforming to IEC 60947-2 connections – terminals Tunnel type terminals1…50 mm² rigid Tunnel type

terminals1.5…35 mm² flexible wire stripping length 15 mm tightening torque 3.5 N.m earth-leakage protection

Separate block Environment standards EN/IEC 60898-1 EN/IEC 60947-2 product certifications EAC IP degree of

protection IP20 conforming to IEC 60529 pollution degree 3 conforming to IEC 60947-2 overvoltage category IV

topicalization 2 conforming to IEC 60068-1 relative humidity 95 % at 55 °C operating altitude 2000 m ambient air

temperature for operation -25…70 °C ambient air temperature for storage -40…85 °C Packing Units Package 1

Weight 0.777 kg Package 1 Height 0.750 dm Package 1 width 0.880 dm Package 1 Length 1.080 dm Offer

Sustainability Sustainable offer status Green Premium product REACh Regulation REACh Declaration REACh free of

SVHC Yes EU RoHS Directive Compliant EU RoHS Declaration Toxic heavy metal-free Yes Mercury-free Yes RoHS

exemption information Yes China RoHS Regulation China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure Product Environmental Profile WEEE The product must be disposed of on European Union

markets following specific waste collection and never end up in rubbish bins Contractual warranty Warranty 18 months
