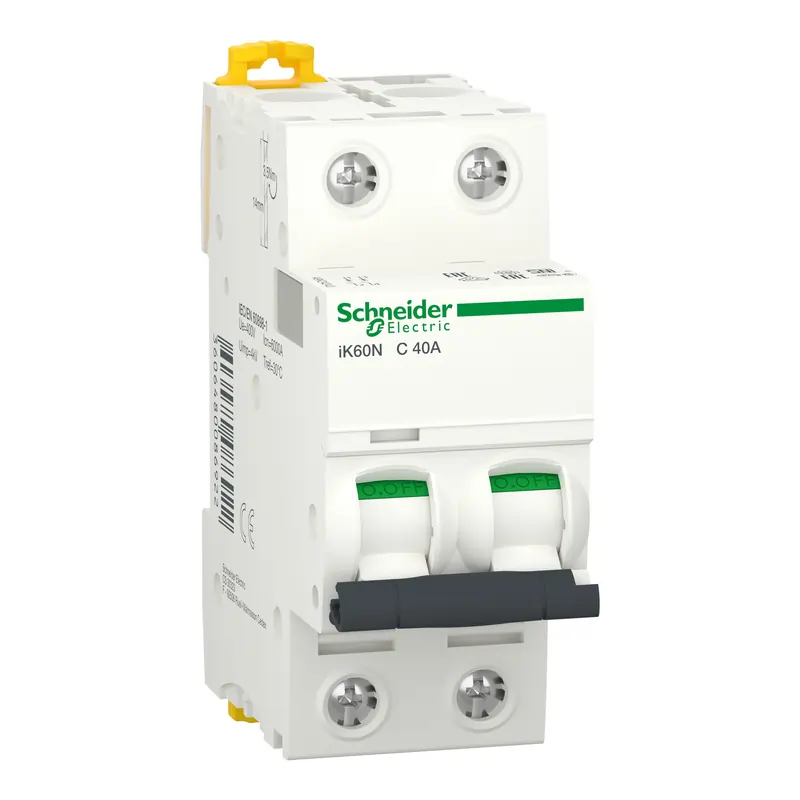

Miniature circuit-breaker, Acti9 iK60N, 2P, 40 A, C curve, 6000 A (IEC 60898-1)
28,000 CFA
Ref: A9K24240
Main device application Distribution range Acti 9 product name Acti 9 iK60 product or component type Miniature
circuit-breaker device short name IK60N poles description 2P number of protected poles 2 [In] rated current 40 A at
30 °C network type AC trip unit technology Thermal-magnetic curve code C breaking capacity 6000 A Icn at 230 V
AC 50/60 Hz conforming to EN/IEC 60898-1 suitability for isolation Yes conforming to EN/IEC 60898-1 standard
EN/IEC 60898-1 product certifications SNI Complementary network frequency 50/60 Hz magnetic tripping limit
5…10 x In [Ics] rated service breaking capacity 6000 A 100 % conforming to EN/IEC 60898-1 – 230 V AC 50/60 Hz
limitation class 3 conforming to EN/IEC 60898-1 [Ui] rated insulation voltage 440 V AC 50/60 Hz conforming to
EN/IEC 60898-1 [Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60898-1 contact position
indicator No control type Toggle local signaling ON/OFF indication mounting mode Clip-on mounting support DIN
rail 9 mm pitches 4 height 85 mm width 36 mm depth 78.5 mm net weight 200 g color White mechanical durability
20000 cycles electrical durability 10000 cycles locking options description Padlocking device connections – terminals
Tunnel type terminal (top or bottom) 1…35 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible wire
stripping length 14 mm for top or bottom connection tightening torque 3.5 N.m top or bottom earth-leakage
protection Without Environment IP degree of protection IP20 conforming to IEC 60529 pollution degree 2
conforming to EN/IEC 60898-1 overvoltage category II ambient air temperature for operation -25…60 °C ambient
air temperature for storage -40…85 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1
Package 1 Weight 237 g Package 1 Height 3.6 cm Package 1 width 7.5 cm Package 1 Length 9.4 cm Package 2 Weight
2.034 kg Package 3 Weight 16.807 kg Offer Sustainability Sustainable offer status Green Premium product REACh
Regulation REACh Declaration EU RoHS Directive Compliant EU RoHS Declaration Mercury-free Yes RoHS
exemption information Yes China RoHS Regulation China RoHS declaration Product out of China RoHS scope.
Substance declaration for your information Environmental Disclosure Product Environmental Profile WEEE The
product must be disposed on European Union markets following specific waste collection and never end up in
rubbish bins Halogen content performance Halogen free product Contractual warranty Warranty 18 months
Brand |
Schneider |
---|
