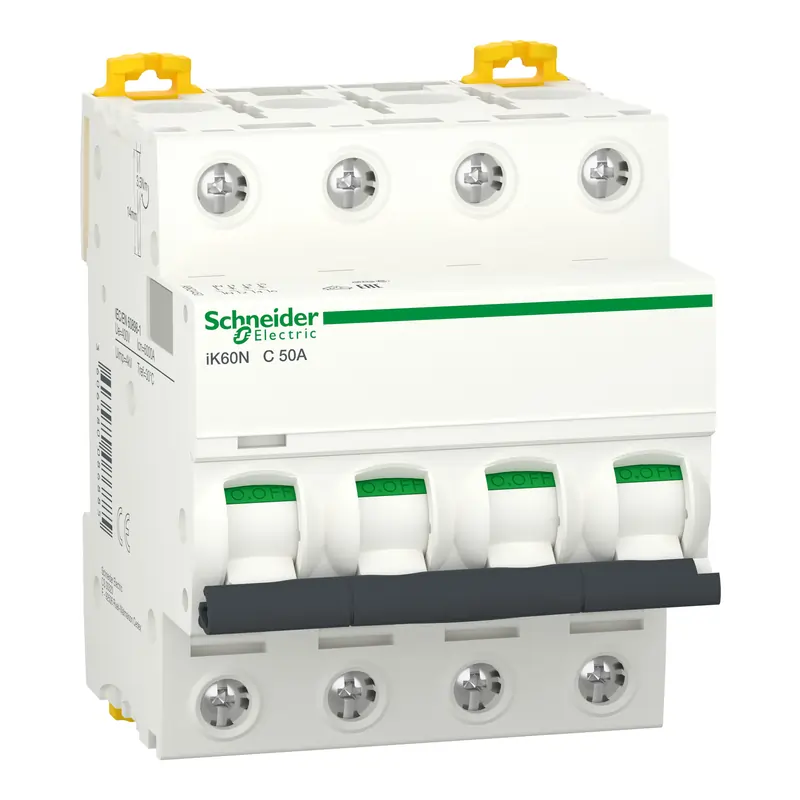

Miniature circuit-breaker, Acti9 iK60N, 4P, 50 A, C curve, 6000 A (IEC 60898-1)

Main device application Distribution range Acti 9 product name Acti 9 iK60 product or component type Miniature

circuit-breaker device short name IK60N poles description 4P number of protected poles 4 [In] rated current 50 A at

30 °C network type AC trip unit technology Thermal-magnetic curve code C breaking capacity 6000 A Icn at 400 V

AC 50/60 Hz conforming to EN/IEC 60898-1 suitability for isolation Yes conforming to EN/IEC 60898-1 standard

EN/IEC 60898-1 Complementary network frequency 50/60 Hz magnetic tripping limit 5…10 x In [Ics] rated service

breaking capacity 6000 A 100 % conforming to EN/IEC 60898-1 – 400 V AC 50/60 Hz limitation class 3 conforming

to EN/IEC 60898-1 [Ui] rated insulation voltage 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 [Uimp] rated

impulse withstand voltage 4 kV conforming to EN/IEC 60898-1 contact position indicator No control type Toggle

local signaling ON/OFF indication mounting mode Clip-on mounting support DIN rail 9 mm pitches 8 height 85

mm width 72 mm depth 78.5 mm net weight 400 g color White mechanical durability 20000 cycles electrical

durability 10000 cycles locking options description Padlocking device connections – terminals Tunnel type terminal

(top or bottom) 1…35 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible wire stripping length 14

mm for top or bottom connection tightening torque 3.5 N.m top or bottom earth-leakage protection Without

Environment IP degree of protection IP20 conforming to IEC 60529 pollution degree 2 conforming to EN/IEC

60898-1 overvoltage category II ambient air temperature for operation -25…60 °C ambient air temperature for

storage -40…85 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Weight 492 g

Package 1 Height 6.8 cm Package 1 width 7 cm Package 1 Length 9 cm Package 2 Weight 1.534 kg Package 3 Weight

17.315 kg Offer Sustainability Sustainable offer status Green Premium product REACh Regulation REACh

Declaration EU RoHS Directive Compliant EU RoHS Declaration Mercury-free Yes RoHS exemption information Yes

China RoHS Regulation China RoHS declaration Product out of China RoHS scope. Substance declaration for your

information Environmental Disclosure Product Environmental Profile WEEE The product must be disposed of on

European Union markets following specific waste collection and never end up in rubbish bins Halogen content

performance Halogen free product Contractual warranty Warranty 18 months
