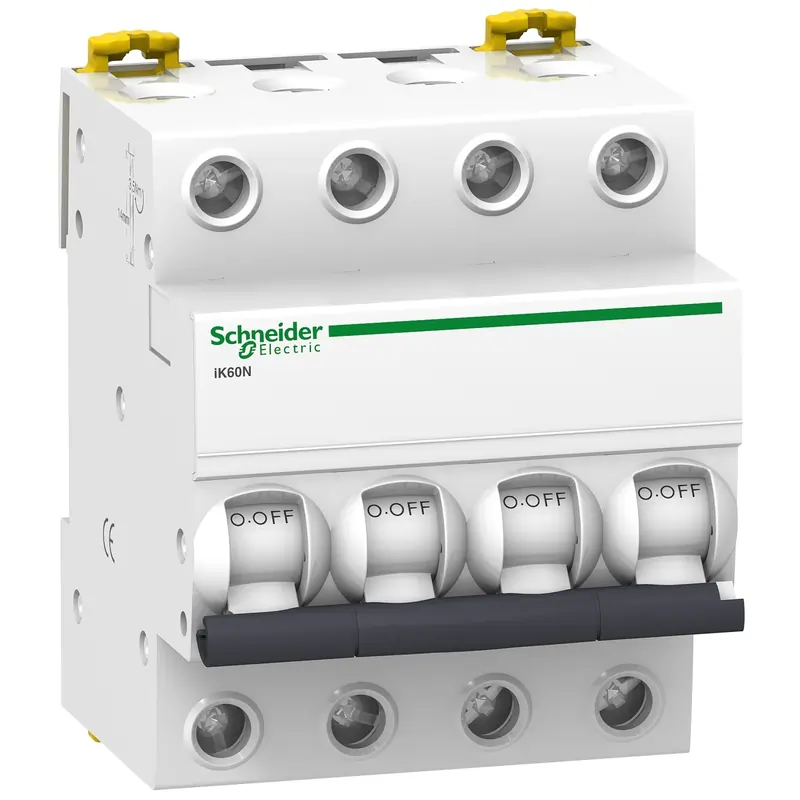

Miniature circuit breaker – iK60N – 4P – 20A – C curve
40,000 CFA
Ref: A9K17420
Description
| device application |
Distribution
|
|
|---|---|---|
| range |
Acti 9
|
|
| product name |
Acti 9 iK60
|
|
| product or component type |
Miniature circuit-breaker
|
|
| device short name |
IK60N
|
|
| poles description |
4P
|
|
| number of protected poles |
4
|
|
| [In] rated current |
20 A at 30 °C
|
|
| network type |
AC
|
|
| trip unit technology |
Thermal-magnetic
|
|
| curve code |
C
|
|
| breaking capacity |
6000Â A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
|
|
| suitability for isolation |
Yes conforming to EN/IEC 60898-1
|
|
| standards |
EN/IEC 60898-1
|
|
| product certifications |
AENOR
|
| network frequency |
50/60 Hz
|
|
|---|---|---|
| magnetic tripping limit |
5…10 x In
|
|
| [Ics] rated service breaking capacity |
6000Â A 100Â % conforming to EN/IEC 60898-1 – 230 V AC 50/60 Hz
|
|
| limitation class |
3 conforming to EN/IEC 60898-1
|
|
| [Ui] rated insulation voltage |
440Â V AC 50/60 Hz conforming to EN/IEC 60898-1
|
|
| [Uimp] rated impulse withstand voltage |
4Â kV conforming to EN/IEC 60898-1
|
|
| control type |
Toggle
|
|
| local signalling |
ON/OFF indication
|
|
| mounting mode |
Clip-on
|
|
| mounting support |
DIN rail
|
|
| 9 mm pitches |
8
|
|
| height |
85Â mm
|
|
| width |
72Â mm
|
|
| depth |
78.5Â mm
|
|
| net weight |
400Â g
|
|
| colour |
White
|
|
| mechanical durability |
20000Â cycles
|
|
| electrical durability |
10000Â cycles
|
|
| locking options description |
Padlocking device
|
|
| connections – terminals |
Tunnel type terminal (top or bottom) 1…25 mm² rigid
Tunnel type terminal (top or bottom) 1…16 mm² flexible |
|
| wire stripping length |
14Â mm for top or bottom connection
|
|
| tightening torque |
3.5Â N.m top or bottom
|
|
| earth-leakage protection |
Without
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
|---|---|---|
| pollution degree |
2 conforming to EN/IEC 60898-1
|
|
| overvoltage category |
III
|
|
| ambient air temperature for operation |
-25…60 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
