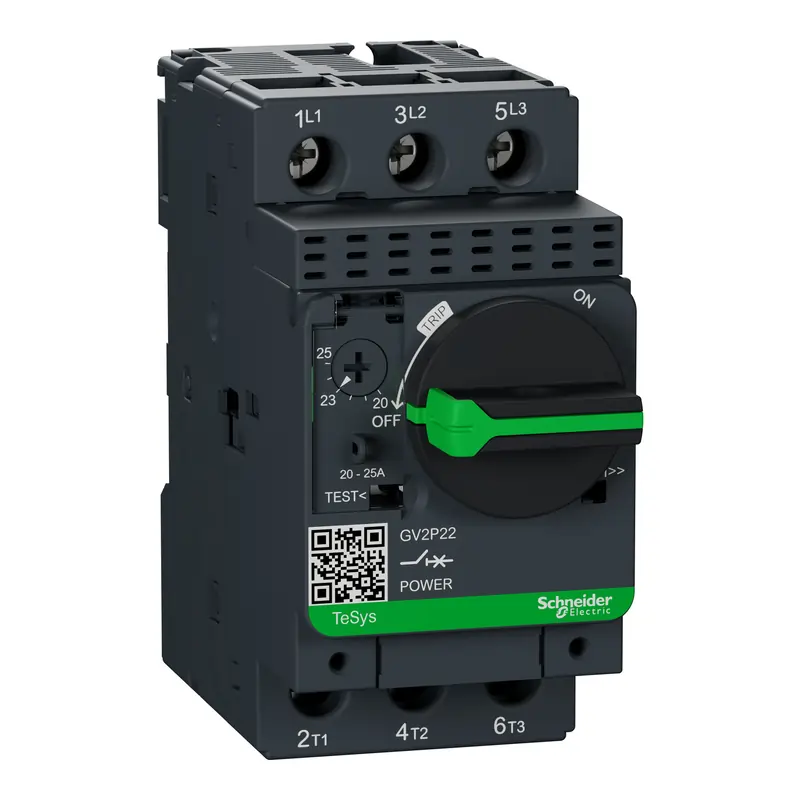

Motor circuit breaker, TeSys GV2, 3P, 20-25 A, thermal magnetic, screw clamp terminals
60,000 CFA
Ref: gv2me22
Description
| range | TeSys | |
|---|---|---|
| product name | TeSys GV2 | |
| device short name | GV2ME | |
| device application | Motor | |
| trip unit technology | Thermal-magnetic |
| poles description | 3P | |
|---|---|---|
| network type | AC | |
| utilisation category | AC-3 conforming to IEC 60947-4-1 Category A conforming to IEC 60947-2 | |
| network frequency | 50/60 Hz conforming to IEC 60947-4-1 | |
| fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) | |
| operating position | Any position | |
| motor power kW | 11Â kW at 400/415 V AC 50/60 Hz 15Â kW at 500 V AC 50/60 Hz | |
| breaking capacity | 3Â kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 15Â kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 50Â kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 6Â kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 4Â kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service short-circuit breaking capacity | 100Â % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 75Â % at 690 V AC 50/60 Hz conforming to IEC 60947-2 75Â % at 500 V AC 50/60 Hz conforming to IEC 60947-2 50Â % at 440 V AC 50/60 Hz conforming to IEC 60947-2 40Â % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| control type | Push-button | |
| [In] rated current | 25Â A | |
| thermal protection adjustment range | 20…25 A | |
| magnetic tripping current | 327Â A | |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ui] rated insulation voltage | 690Â V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ith] conventional free air thermal current | 25Â A conforming to IEC 60947-4-1 | |
| [Uimp] rated impulse withstand voltage | 6Â kV IEC 60947-2 | |
| power dissipation per pole | 2.5Â W | |
| mechanical durability | 100000Â cycles | |
| electrical durability | 100000Â cycles for AC-3 at 440 V | |
| maximum operating rate | 25Â cyc/h | |
| rated duty | Continuous conforming to IEC 60947-4-1 | |
| tightening torque | 1.7Â N.m on screw clamp terminals | |
| suitability for isolation | Yes conforming to IEC 60947-1 | |
| phase failure sensitivity | Yes conforming to IEC 60947-4-1 | |
| height | 89Â mm | |
| width | 45Â mm | |
| depth | 78.5Â mm | |
| net weight | 0.26Â kg |
| standards | EN/IEC 60947-2 EN/IEC 60947-4-1 CSA C22.2 No 60947-4-1 UL 60947-4-1 | |
|---|---|---|
| product certifications | IECEE CB Scheme UL CSA CCC EAC ATEX BV LROS (Lloyds register of shipping) DNV-GL RINA | |
| protective treatment | TH | |
| IP degree of protection | IP20 conforming to IEC 60529 | |
| IK degree of protection | IK04 | |
| ambient air temperature for operation | -20…60 °C | |
| ambient air temperature for storage | -40…80 °C | |
| fire resistance | 960 °C conforming to IEC 60695-2-1 | |
| operating altitude | 2000 m |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 285.9Â g | |
| Package 1 Height | 4.7Â cm | |
| Package 1 width | 8.5Â cm | |
| Package 1 Length | 9.2Â cm | |
| Unit Type of Package 2 | S02 | |
| Number of Units in Package 2 | 24 | |
| Package 2 Weight | 7.186Â kg | |
| Package 2 Height | 15Â cm | |
| Package 2 width | 30Â cm | |
| Package 2 Length | 40Â cm | |
| Unit Type of Package 3 | P06 | |
| Number of Units in Package 3 | 384 | |
| Package 3 Weight | 129.275Â kg | |
| Package 3 Height | 80Â cm | |
| Package 3 width | 80Â cm | |
| Package 3 Length | 60Â cm |
