| range |
TeSys
|
|
|---|---|---|
| product name |

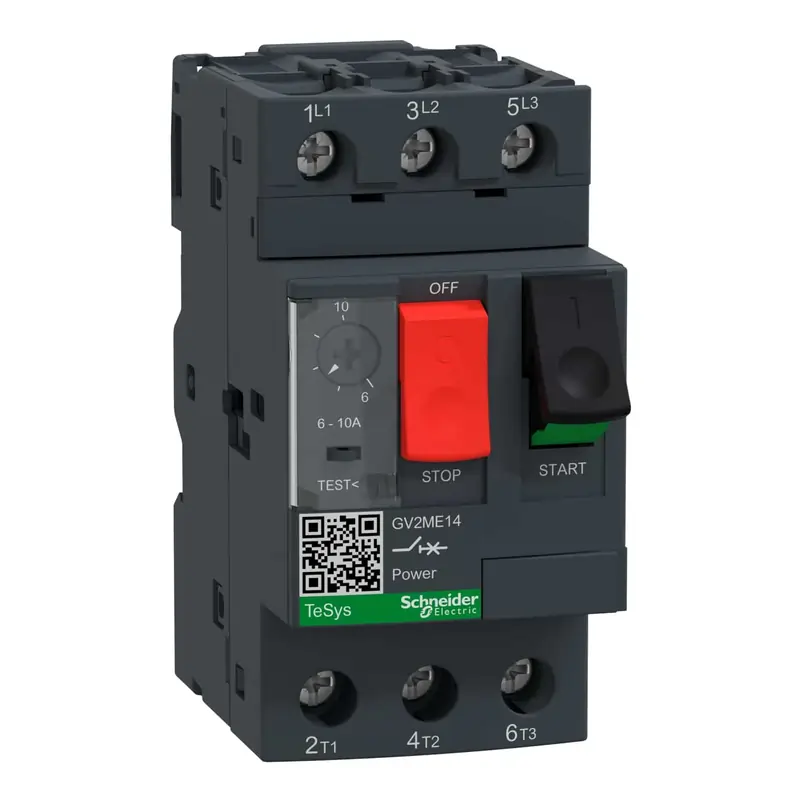

TeSys GV2
|
|
| device short name |
GV2ME
|
|
| device application |
Motor
|
|
| trip unit technology |
Thermal-magnetic
|
| poles description |
3P
|
|
|---|---|---|
| network type |
AC
|
|
| utilisation category |
AC-3 conforming to IEC 60947-4-1
Category A conforming to IEC 60947-2 |
|
| network frequency |
50/60 Hz conforming to IEC 60947-4-1
|
|
| fixing mode |
35 mm symmetrical DIN rail: clipped
Panel: screwed (with adaptor plate) |
|
| operating position |
Any position
|
|
| motor power kW |
3Â kW at 400/415 V AC 50/60 Hz
4Â kW at 400/415 V AC 50/60 Hz 4Â kW at 500 V AC 50/60 Hz 5.5Â kW at 690 V AC 50/60 Hz 7.5Â kW at 690 V AC 50/60 Hz 5.5Â kW at 500 V AC 50/60 Hz |
|
| breaking capacity |
100Â kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100Â kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 3Â kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 10Â kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 15Â kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| [Ics] rated service short-circuit breaking capacity |
100Â % at 500 V AC 50/60 Hz conforming to IEC 60947-2
100Â % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100Â % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100Â % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 75Â % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| control type |
Push-button
|
|
| [In] rated current |
10Â A
|
|
| thermal protection adjustment range |
6…10 A
|
|
| magnetic tripping current |
138Â A
|
|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| [Ui] rated insulation voltage |
690Â V AC 50/60 Hz conforming to IEC 60947-2
|
|
| [Ith] conventional free air thermal current |
10Â A conforming to IEC 60947-4-1
|
|
| [Uimp] rated impulse withstand voltage |
IEC 60947-2 6Â kV
|
|
| power dissipation per pole |
2.5Â W
|
|
| mechanical durability |
100000Â cycles
|
|
| electrical durability |
100000Â cycles for AC-3 at 440 V
|
|
| maximum operating rate |
25Â cyc/h
|
|
| rated duty |
Continuous conforming to IEC 60947-4-1
|
|
| tightening torque |
1.7Â N.m on screw clamp terminals
|
|
| suitability for isolation |
Yes conforming to IEC 60947-1
|
|
| phase failure sensitivity |
Yes conforming to IEC 60947-4-1
|
|
| height |
89Â mm
|
|
| width |
45Â mm
|
|
| depth |
78.5Â mm
|
|
| net weight |
0.26Â kg
|
| standards |
EN/IEC 60947-2
EN/IEC 60947-4-1 CSA C22.2 No 60947-4-1 UL 60947-4-1 |
|
|---|---|---|
| product certifications |
IECEE CB Scheme
UL CSA CCC EAC ATEX BV LROS (Lloyds register of shipping) DNV-GL RINA |
|
| protective treatment |
TH
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| IK degree of protection |
IK04
|
|
| ambient air temperature for operation |
-20…60 °C
|
|
| ambient air temperature for storage |
-40…80 °C
|
|
| fire resistance |
960 °C conforming to IEC 60695-2-1
|
|
| operating altitude |
2000 m
|
