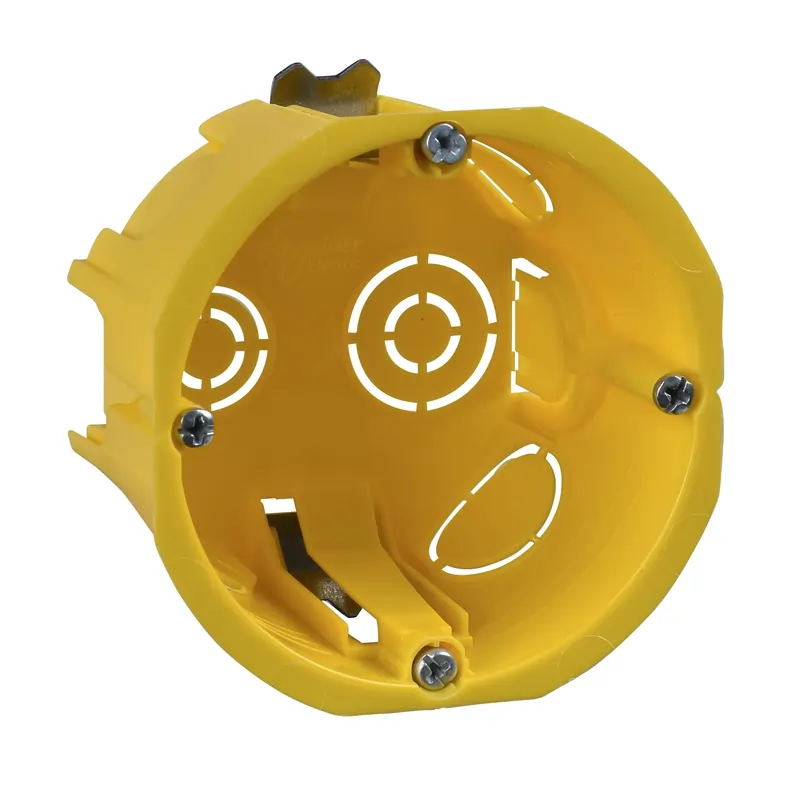

MT35150 – Multifix Plus – apparatus box – 1 gang – without cover – 65x45mm
500 CFA
Ref IMT35150
Description
Characteristics
| Series | Multifix | |
|---|---|---|
| Series | Multifix | |
| Product name | Multifix Plus | |
| type of product | Wiring box | |
| Product complete set | Without cover | |
| Quantity in one set | Set of 210 |
| Available functions | Anti-rotation system | |
|---|---|---|
| Number of posts | 1-post | |
| Latching mode | With screws and feet | |
| Material | PP (polypropylene) | |
| Mechanical strength | Fire resistance | |
| color shade | Box: yellow (RAL 1018) | |
| cable gland | 3 Removable plug diameter: 20 mm | |
| Height | 71 mm | |
| Width | 71 mm | |
| Depth | 46 mm | |
| Diameter | 71 mm | |
| Distance between supports | 60 mm | |
| pipe diameter | 0.84 mm | |
| Internal depth | 44 mm | |
| length | 71 mm | |
| maximum cable cross section | 2.5 mm² | |
| seal | Without | |
| Surface | Untreated |
| Ambient operating temperature | -5 … 60 ° C | |
|---|---|---|
| IP degree of protection | IP20 | |
| Standards | IEC 60670-1 |
| Packing type 1 | PCE | |
|---|---|---|
| Number of units in a package | one | |
| Weight of packing | 22.125 g | |
| Package height 1 | 4.5 cm | |
| Packing width 1 | 7.5 cm | |
| Packing length 1 | 7.5 cm | |
| Packing type 2 | CAR | |
| Number of pieces in a package 2 | 210 | |
| Package weight 2 | 5.116 kg | |
| Package height 2 | 33.5 cm | |
| Packing width 2 | 38 cm | |
| Package length 2 | 39 cm | |
| Packing type 3 | P12 | |
| Number of pieces in a package 3 | 3780 | |
| Package weight 3 | 104.638 kg | |
| Packing height 3 | 111.5 cm | |
| Packing width 3 | 80 cm | |
| Packing length 3 | 120 cm |
Additional information
| Brand |
Schneider |
|---|
