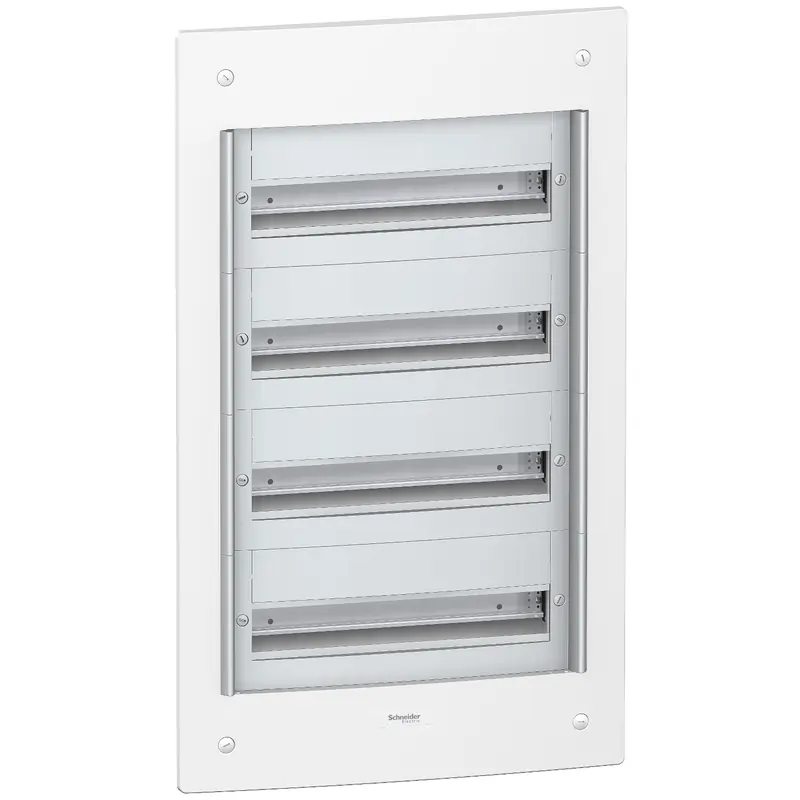

Pragma flush enclosure – IP30 – 4 x 18 modules – without door
145,000 CFA
Ref PRA32418
SKU:
PRA32418
Categories: Distribution Box, Electrical
Description
range | Pragma | |
---|---|---|
product or component type | Enclosure | |
enclosure type | Distribution enclosure | |
width | 456Â mm wall: 486Â mm outside: | |
height | 780Â mm wall: 810Â mm outside: | |
depth | 86Â mm wall: 23Â mm outside: | |
Nb of 18 mm modules per row | 18 | |
Nb of horizontal rows | 4 | |
electrical insulation class | Class II Double insulation | |
provided equipment | 1 x identification label 1 x marking kit 1 x blanking plate strip 3 x terminal block | |
Type of door | Without |
enclosure mounting | Flush | |
---|---|---|
9 mm pitches | 36 | |
total number of 18 mm modules | 72 | |
power dissipation in W | 100Â W | |
[In] rated current | 125Â A | |
type of rail | DIN | |
mounting plate description | Without mounting plate | |
cable entry | Removable plates Cable or tube Side pre-cutouts | |
comb busbar and distribution block compatibility | XE compatible | |
number of terminal blocks | 1 earth (Quick) with 38 outgoers 2 phase / neutral (Quick) with 7 outgoers | |
distribution block outgoers | 6 x 25 mm² for earth 32 x 4 mm² for earth 2 x 35 mm² for phase / neutral 12 x 16 mm² for phase / neutral | |
enclosure material | Back part: technoplastic Front face: technoplastic | |
colour | Enclosure: white (RAL 9016) Front face: white (RAL 9016) |
Additional information
Brand |
Schneider |
---|
