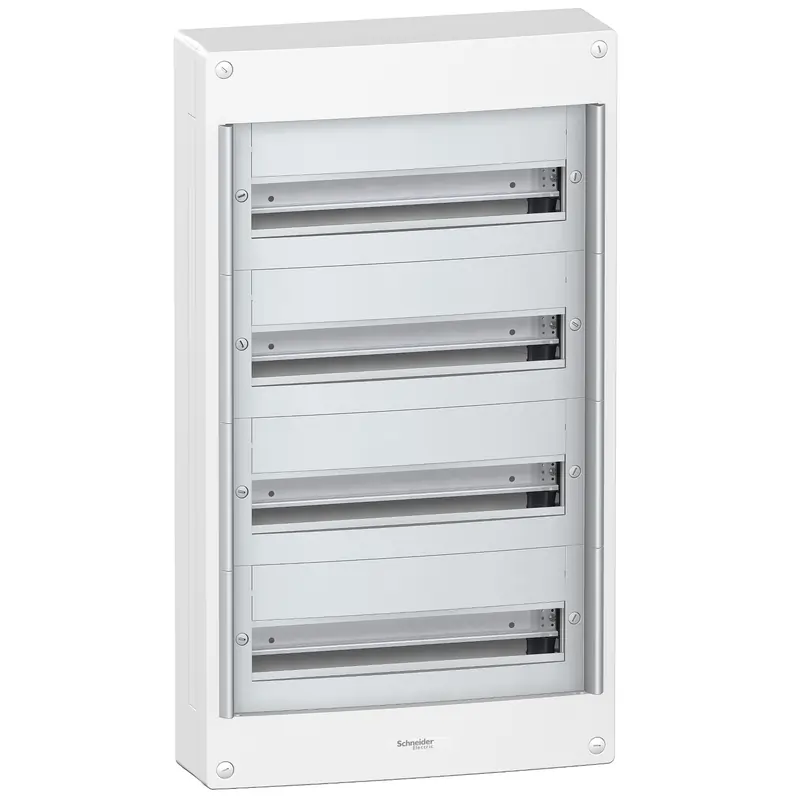

Pragma surface enclosure – IP30 – 4 x 18 modules – without door
110,000 CFA
Ref PRA13754
Description
Characteristics
| range | Pragma | |
|---|---|---|
| product or component type | Enclosure | |
| enclosure type | Distribution enclosure | |
| width | 426Â mm | |
| height | 750Â mm | |
| depth | 125Â mm | |
| Nb of 18 mm modules per row | 18 | |
| Nb of horizontal rows | 4 | |
| electrical insulation class | Double insulation Class II | |
| provided equipment | 1 x identification label 1 x marking kit 1 x blanking plate strip 3 x terminal block | |
| Type of door | Without |
| enclosure mounting | Surface | |
|---|---|---|
| 9 mm pitches | 36 | |
| total number of 18 mm modules | 72 | |
| power dissipation in W | 64Â W | |
| [In] rated current | 125Â A | |
| type of rail | DIN | |
| cable entry | Removable plates Trunking Cut-out plates Cable or tube | |
| comb busbar and distribution block compatibility | XE compatible | |
| number of terminal blocks | 1 earth (Quick) with 38 outgoers 2 phase / neutral (Quick) with 7 outgoers | |
| distribution block outgoers | 6 x 25 mm² for earth 32 x 4 mm² for earth 2 x 35 mm² for phase / neutral 12 x 16 mm² for phase / neutral | |
| enclosure material | Back part: technoplastic Front face: technoplastic | |
| colour | Enclosure: white (RAL 9016) Front face: white (RAL 9016) |
Additional information
| Brand |
Schneider |
|---|
