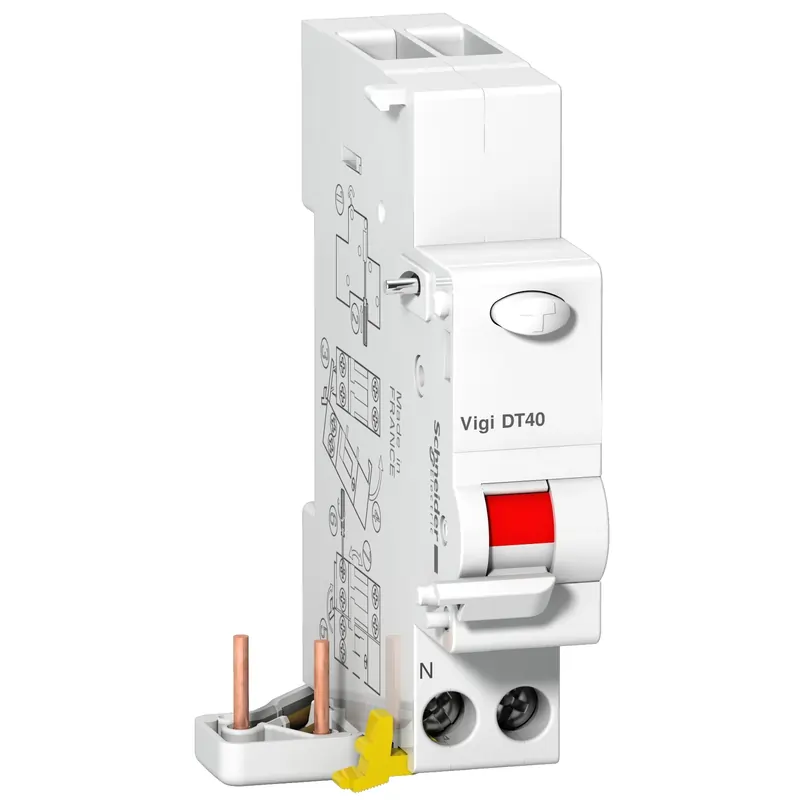

ProDis – earth leakage add-on block – Vigi DT40 – 1P + N – 25A – 300mA
70,000 CFA
Ref: A9N21451
Description
| range |
Prodis
|
|
|---|---|---|
| product or component type |
Add-on residual current devices
|
|
| device short name |
Vigi DT40
|
|
| poles description |
1P + N
|
|
| neutral position |
Left
|
|
| [In] rated current |
25Â A
|
|
| network type |
AC
|
|
| earth-leakage sensitivity |
300Â mA
|
|
| earth-leakage protection time delay |
Instantaneous
|
|
| earth-leakage protection class |
Type AC
|
| device location in system |
Outgoer
|
|
|---|---|---|
| network frequency |
50 Hz
|
|
| [Ue] rated operational voltage |
230 V AC 50 Hz phase to neutral
|
|
| residual current tripping technology |
Voltage independent
|
|
| [Ui] rated insulation voltage |
400Â V AC 50 Hz conforming to EN 61009-1
|
|
| [Uimp] rated impulse withstand voltage |
6Â kV conforming to EN 61009-1
|
|
| local signalling |
ON/OFF indication
|
|
| mounting mode |
Clip-on
|
|
| mounting support |
DIN rail
|
|
| electrical connection to mcb |
By screws
|
|
| 9 mm pitches |
2
|
|
| height |
81Â mm
|
|
| width |
18Â mm
|
|
| depth |
69Â mm
|
|
| net weight |
90Â g
|
|
| colour |
White
|
|
| electrical durability |
10000Â cycles
|
|
| connections – terminals |
Cable downstream 0.75…16 mm² rigid
Cable downstream 0.33…10 mm² flexible |
|
| wire stripping length |
13Â mm
|
|
| tightening torque |
2Â N.m
|
Additional information
| Brand |
Schneider |
|---|
