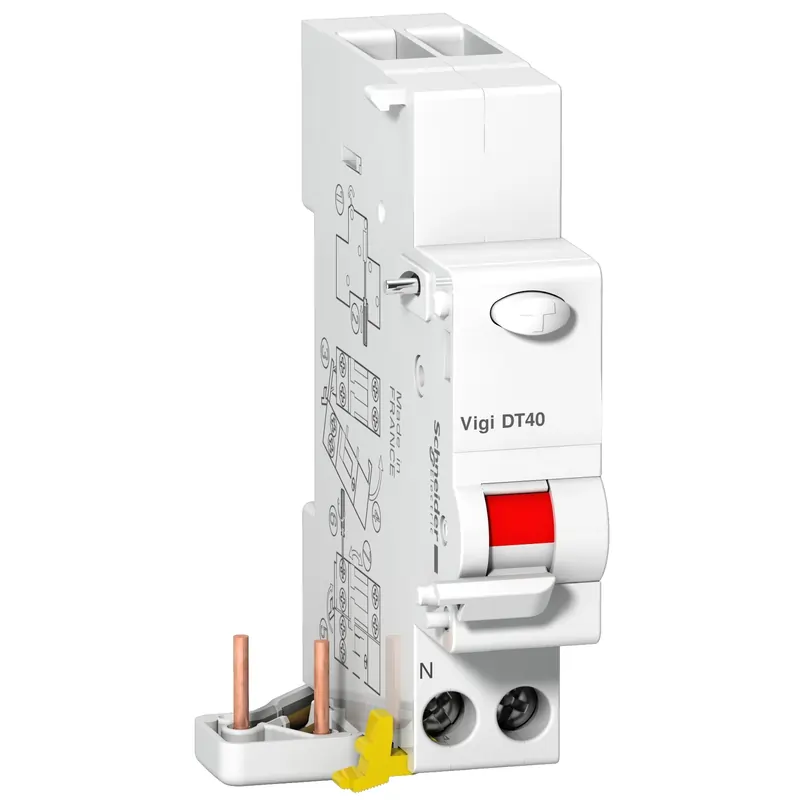

ProDis – earth leakage add-on block – Vigi DT40 – 1P + N – 25A – 30mA

Main range Prodi’s product or component type Add-on residual current devices device short name Vigi DT40 poles

description 1P + N neutral position Left [In] rated current 25 A network type AC earth-leakage sensitivity 30 mA

earth-leakage protection time delay Instantaneous earth-leakage protection class Type AC Complementary device

location in system Outgoer network frequency 50 Hz [Ue] rated operational voltage 230 V AC 50 Hz phase to neutral

residual current tripping technology Voltage independent [Ui] rated insulation voltage 400 V AC 50 Hz conforming

to EN 61009-1 [Uimp] rated impulse withstand voltage 6 kV conforming to EN 61009-1
