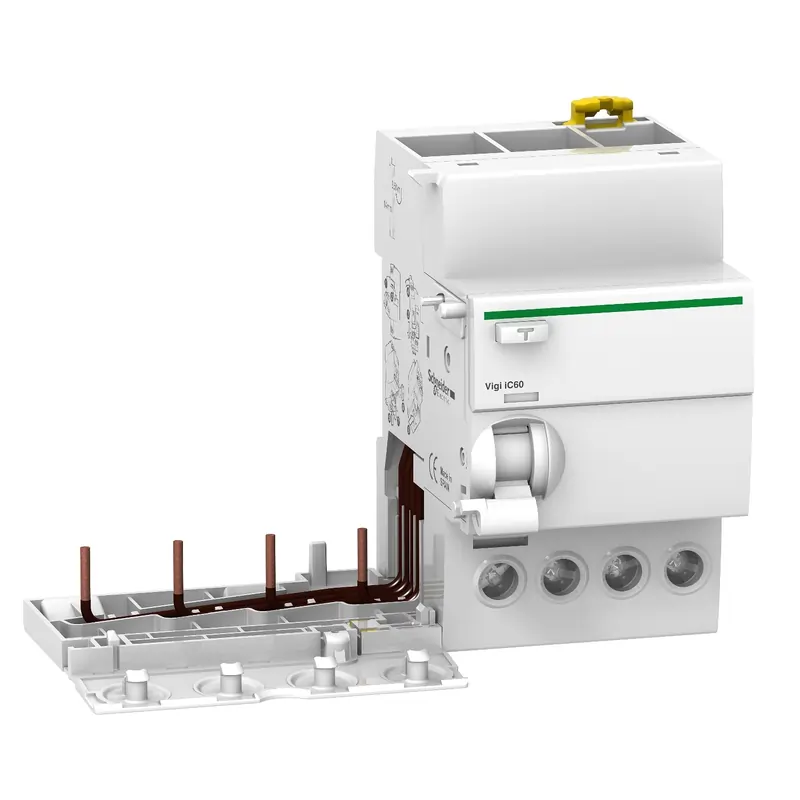

Vigi iC60 – earth leakage add-on block – 4P – 25A – 30mA – AC type

Main range Acti 9 product or component type Add-on residual current devices device short name Vigi iC60 poles

description 4P [In] rated current 25 A earth-leakage sensitivity 30 mA earth-leakage protection time delay

Instantaneous Earth leakage protection type Type AC network frequency 50/60 Hz [Ue] rated operational voltage

400 V AC 50/60 Hz conforming to EN 61009-1 400/415 V AC 50/60 Hz conforming to IEC 61009-1 standards EN

61009-1 IEC 61009-1 9 mm pitches 6
