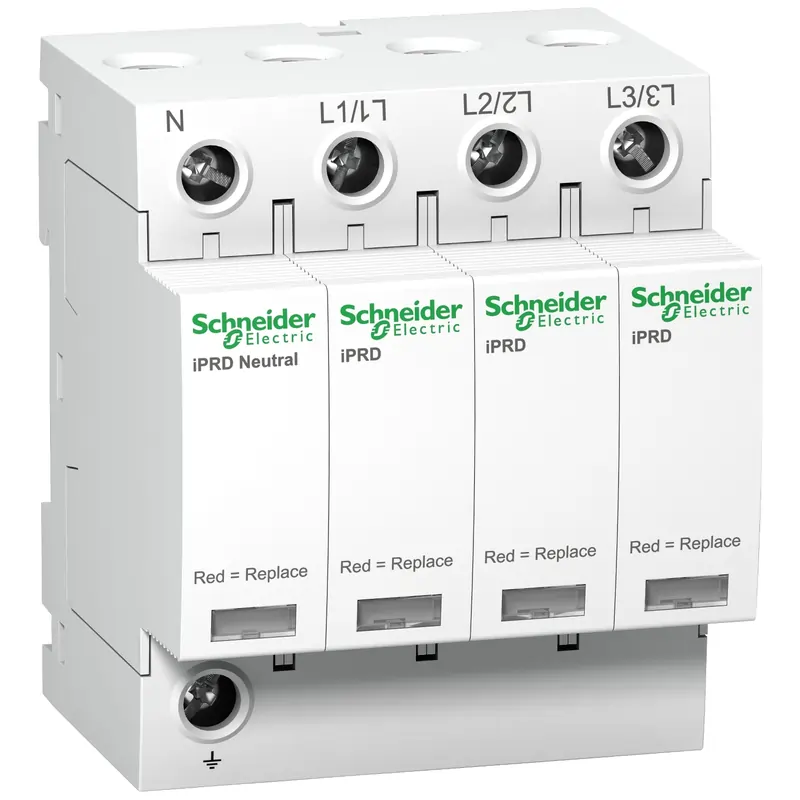

A9L20600 – iPRD20 modular surge arrester – 3P + N – 350V

Acti 9

Acti 9 iPRD

Surge arrester with pluggable cartridge

IPRD20

Distribution

3P + N

Without

Electrical distribution network

TT
TN-S

Type 2

MOV + GDT

230/400 V AC (+/- 10 %) at 50/60 Hz

Common mode: 5 kA (L/PE)
Common mode: 5 kA (N/PE)
Differential mode: 5 kA (L/N)

Common mode: 20 kA L/PE
Common mode: 20 kA N/PE
Differential mode: 20 kA L/N

Common mode: 260 V N/PE
Common mode: 350 V L/PE
Differential mode: 350 V L/N

Differential mode <1.1 kV type 2 L/N
Common mode <1.4 kV type 2 N/PE

337 V L/N 5 s withstand
1200 V N/PE 200 ms safe failure mode
442 V L/PE 5 s withstand
1453 V L/PE 200 ms safe failure mode

Associated circuit breaker iC60N 20 A curve C – Icu 10 kA
Associated circuit breaker iC60H 20 A curve C – Icu 15 kA
Associated circuit breaker iC60L 20 A curve C – Icu 25 kA
Associated circuit breaker NG125H 63 A curve C – Icu 36 kA
Associated circuit breaker NG125L 63 A curve C – Icu 50 kA
Associated fuse gG 40 A – Icu 15 kA
Associated fuse gG 80 A – Icu 50 kA

50 kA

Clip-on

DIN rail

8

85 mm

72 mm

69 mm

0.414 kg

White (RAL 9003)

<= 25 ns

0.6 mA
0.003 mA

Tunnel type terminal (downside) 2.5…35 mm²
Tunnel type terminal (upside) 2.5…35 mm²

2.5 N.m
