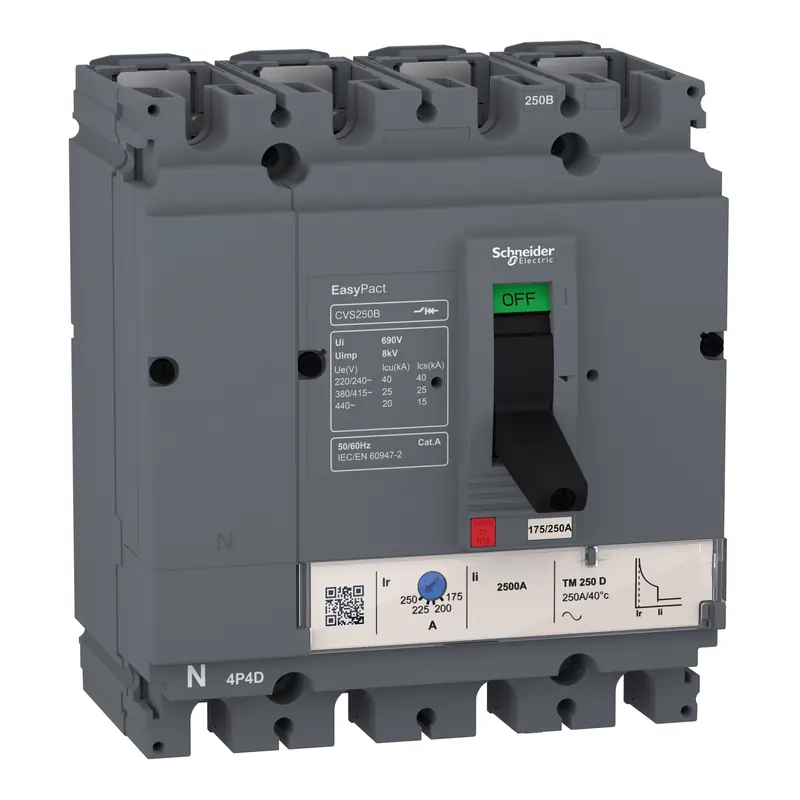

Circuit breaker EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 4P 3d
370,000 CFA
Ref: LV525313
SKU:
LV525313
Categories: Circuit breakers, Electrical
Description
range of product | Easypact CVS100…250 | |
---|---|---|
product or component type | Circuit breaker | |
device short name | CVS250B | |
device application | Distribution | |
poles description | 4P | |
protected poles description | 3d | |
neutral position | Left | |
Earth leakage protection (Vigi add on) | Without | |
[In] rated current | 250 A at 40 °C | |
breaking capacity code | B | |
network type | AC | |
[Icu] Breaking capacity | 40Â kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 25Â kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 20Â kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
utilisation category | Category A | |
trip unit name | TM-D | |
trip unit technology | Thermal-magnetic | |
trip unit rating | 250 A at 40 °C | |
protection type | Overload protection (thermal) Short-circuit protection (magnetic) |
network frequency | 50/60 Hz | |
---|---|---|
control type | Toggle | |
mounting mode | Fixed | |
mounting support | Backplate | |
upside connection | Front | |
downside connection | Front | |
connections – terminals | Screw connection | |
[Uimp] rated impulse withstand voltage | 8Â kV conforming to EN/IEC 60947-2 | |
thermal protection adjustment range | 175…250 A | |
[Ics] rated service breaking capacity | 15Â kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 25Â kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40Â kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 | |
mechanical durability | 20000Â cycles | |
electrical durability | 10000Â cycles 415 V In conforming to IEC 60947-2 | |
connection pitch | 35Â mm | |
contact position indicator | Yes | |
neutral protection setting | No protection (3d) | |
long time pick-up adjustment type Ir | Adjustable | |
long time pick-up adjustment range | 0.7…1 x In | |
long time delay adjustment type | Fixed | |
instantaneous pick-up adjustment type Ii | Fixed | |
instantaneous pick-up adjustment range | 2500 A | |
height | 161Â mm | |
width | 140Â mm | |
depth | 86Â mm | |
net weight | 2.6Â kg |
electrical shock protection class | Class II | |
---|---|---|
standards | EN 60947-2 IEC 60947-2 | |
product certifications | GOST IEC | |
IP degree of protection | IP40 | |
pollution degree | 3 conforming to IEC 60664-1 | |
ambient air temperature for operation | -25…70 °C | |
ambient air temperature for storage | -50…85 °C |
Unit Type of Package 1 | PCE | |
---|---|---|
Number of Units in Package 1 | 1 | |
Package 1 Weight | 2.536Â kg | |
Package 1 Height | 14Â cm | |
Package 1 width | 14.6Â cm | |
Package 1 Length | 19Â cm |
