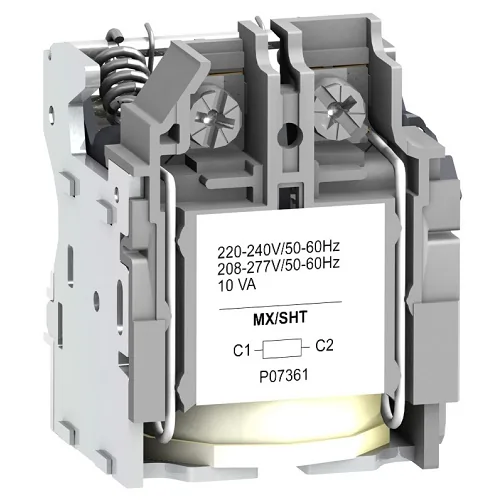

MX shunt release, ComPact NSX, rated voltage 220/240 VAC 50/60 Hz, 208/277 VAC 60 Hz
80,000 CFA
Ref: LV429387
Description
| device short name | MX | |
|---|---|---|
| product or component type | Voltage release | |
| device application | Control | |
| range compatibility | ComPact NSX EasyPact CVS PowerPact Multistandard ComPact NSX DC | |
| voltage release type | Shunt trip release | |
| [Uc] control circuit voltage | 208…277 V AC 60 Hz 220…240 V AC 50/60 Hz |
| control signal type | Impulse Maintained | |
|---|---|---|
| impulse duration | >= 20 ms | |
| threshold tripping voltage | 0.7…1.1 x Un opening | |
| supply inrush power | 10 VA | |
| mounting mode | Fixed | |
| response time | 50 ms | |
| auxiliary connection terminal | Screw terminal 0…1.5 mm² |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 127Â g | |
| Package 1 Height | 4Â cm | |
| Package 1 width | 6.3Â cm | |
| Package 1 Length | 8.2Â cm | |
| Unit Type of Package 2 | BB1 | |
| Number of Units in Package 2 | 10 | |
| Package 2 Weight | 1.36Â kg | |
| Package 2 Height | 9.2Â cm | |
| Package 2 width | 14.8Â cm | |
| Package 2 Length | 22.4Â cm | |
| Unit Type of Package 3 | S03 | |
| Number of Units in Package 3 | 60 | |
| Package 3 Weight | 8.65Â kg | |
| Package 3 Height | 30Â cm | |
| Package 3 width | 30Â cm | |
| Package 3 Length | 40Â cm |
Additional information
| Brand |
Schneider |
|---|
