| range |
Prodis
|
|
|---|---|---|
| product or component type |
Add-on residual current devices
|
|
| device short name |

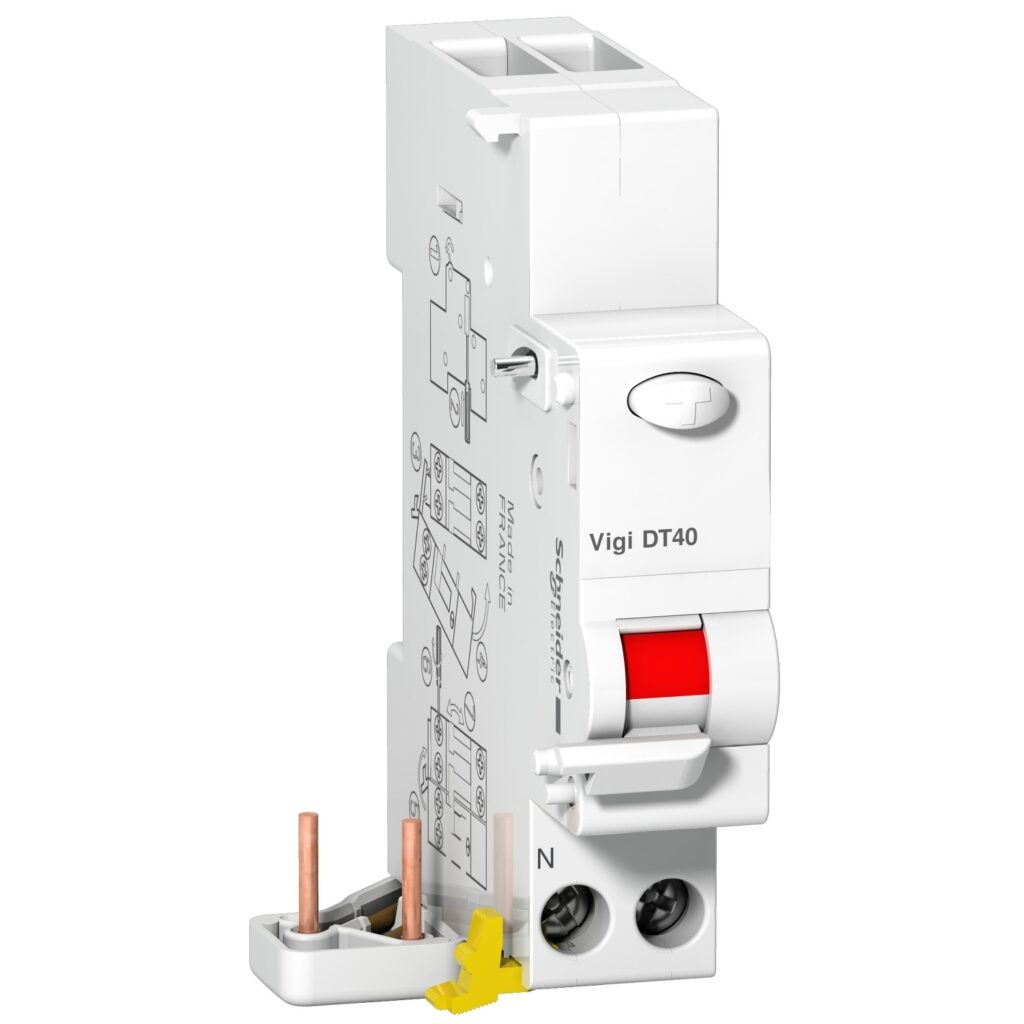

Vigi DT40
|
|
| poles description |
1P + N
|
|
| neutral position |
Left
|
|
| [In] rated current |
40 A
|
|
| network type |
AC
|
|
| earth-leakage sensitivity |
30 mA
|
|
| earth-leakage protection time delay |
Instantaneous
|
|
| earth-leakage protection class |
Type AC
|
| device location in system |
Outgoer
|
|
|---|---|---|
| network frequency |
50 Hz
|
|
| [Ue] rated operational voltage |
230 V AC 50 Hz phase to neutral
|
|
| residual current tripping technology |
Voltage independent
|
|
| [Ui] rated insulation voltage |
400 V AC 50 Hz conforming to EN 61009-1
|
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to EN 61009-1
|
|
| local signalling |
ON/OFF indication
|
|
| mounting mode |
Clip-on
|
|
| mounting support |
DIN rail
|
|
| electrical connection to mcb |
By screws
|
|
| 9 mm pitches |
2
|
|
| height |
81 mm
|
|
| width |
18 mm
|
|
| depth |
69 mm
|
|
| net weight |
90 g
|
|
| colour |
White
|
|
| electrical durability |
10000 cycles
|
|
| connections – terminals |
Cable downstream 0.75…16 mm² rigid
Cable downstream 0.33…10 mm² flexible |
|
| wire stripping length |
13 mm
|
|
| tightening torque |
2 N.m
|
| standards |
EN 61009-1
EN 61009-2-1 |
|
|---|---|---|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| pollution degree |
3 conforming to EN 61009-1
|
|
| tropicalisation |
2 conforming to IEC 60068-1
|
|
| relative humidity |
95 % at 55 °C
|
|
| operating altitude |
2000 m
|
|
| ambient air temperature for operation |
-5…60 °C
|
|
| ambient air temperature for storage |
-40…60 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
114 g
|
|
| Package 1 Height |
8.5 cm
|
|
| Package 1 width |
4 cm
|
|
| Package 1 Length |
11.5 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
6
|
|
| Package 2 Weight |
744 g
|
|
| Package 2 Height |
12 cm
|
|
| Package 2 width |
9 cm
|
|
| Package 2 Length |
27 cm
|
|
| Unit Type of Package 3 |
S03
|
|
| Number of Units in Package 3 |
54
|
|
| Package 3 Weight |
7.133 kg
|
|
| Package 3 Height |
30 cm
|
|
| Package 3 width |
30 cm
|
|
| Package 3 Length |
40 cm
|
